Documentation for ATIS-Draft-03-00-79

Complex Type: CPTSubscriptionHeader

[Table of contents]

Super-types: None
Sub-types: None
Name CPTSubscriptionHeader
Used by (from the same schema document) Complex Type CcAdherencePerformance , Complex Type CcAdherencePerformanceSub , Complex Type CcDGPS , Complex Type CcDGPSSub , Complex Type CcFleetHealthAlarm , Complex Type CcFleetHealthAlarmSub , Complex Type CcFleetLocation , Complex Type CcFleetLocationSub , Complex Type CcFleetMechanicalData , Complex Type CcFleetMechanicalDataSub , Complex Type CcFleetPassengerData , Complex Type CcFleetPassengerDataSub , Complex Type CcLocationReportSub , Complex Type CcOperatingData , Complex Type CcOperatingDataSub , Complex Type CcPollParameters , Complex Type CcPollParametersSub , Complex Type CcPTVAdherence , Complex Type CcPTVAdherenceSub , Complex Type CcPTVehicleAlarm , Complex Type CcPTVehicleAlarmSub , Complex Type CcPTVehicleParameter , Complex Type CcPTVehicleParameterSub , Complex Type CcTravelerRequestLog , Complex Type CcTravelerRequestLogSub , Complex Type CcVideoFeed , Complex Type CcVideoFeedSub , Complex Type CcVideoImages , Complex Type CcVideoImagesSub , Complex Type CptEmployeeList , Complex Type CptEmployeeListSub , Complex Type CptFleetSubsets , Complex Type CptFleetSubsetsSub , Complex Type CptShelterList , Complex Type CptShelterListSub , Complex Type CptStoppointList , Complex Type CptStoppointListSub , Complex Type CptStoppointSubsets , Complex Type CptStoppointSubsetsSub , Complex Type CptSubErrorNotice , Complex Type CptTransferClusterList , Complex Type CptTransferClusterListSub , Complex Type CptTransitFacilities , Complex Type CptTransitFacilitiesSub , Complex Type CptVehicleInventoryList , Complex Type CptVehicleInventoryListSub , Complex Type CptWatchdogTimer , Complex Type CptWatchdogTimerSub , Complex Type FcEquipmentSubsets , Complex Type FcEquipmentSubsetsSub , Complex Type FcFareHealth , Complex Type FcFareHealthSub , Complex Type FcFareZones , Complex Type FcFareZonesSub , Complex Type FcPassengerData , Complex Type FcPassengerDataSub , Complex Type FcRevenueData , Complex Type FcRevenueDataSub , Complex Type ImIncidentHistory , Complex Type ImIncidentHistorySub , Complex Type ImIncidentList , Complex Type ImIncidentListSub , Complex Type ObLocation , Complex Type ObLocationSub , Complex Type ObPassengerCount , Complex Type ObPassengerCountSub , Complex Type ObSignon , Complex Type ObSignonSub , Complex Type ObWLANStatusSub , Complex Type PiAccessibilityList , Complex Type PiAccessibilityListSub , Complex Type PiAgencyFiles , Complex Type PiAgencyFilesSub , Complex Type PiAgencyList , Complex Type PiAgencyListSub , Complex Type PiAmenitiesList , Complex Type PiAmenitiesListSub , Complex Type PiAnnouncementsList , Complex Type PiAnnouncementsListSub , Complex Type PiDirections , Complex Type PiDirectionsSub , Complex Type PiFoundItems , Complex Type PiFoundItemsSub , Complex Type PiGeoZoneList , Complex Type PiGeoZoneListSub , Complex Type PiItineraryFare , Complex Type PiItineraryFareSub , Complex Type PiItineraryMap , Complex Type PiItineraryMapSub , Complex Type PiLandmarksList , Complex Type PiLandmarksListSub , Complex Type PiLocationMap , Complex Type PiLocationMapSub , Complex Type PiMailingList , Complex Type PiMailingListSub , Complex Type PiNearestStopList , Complex Type PiNearestStopListSub , Complex Type PiProfile , Complex Type PiProfileSub , Complex Type PiRouteList , Complex Type PiRouteListSub , Complex Type PiServiceBulletinsList , Complex Type PiServiceBulletinsListSub , Complex Type PiServiceList , Complex Type PiServiceListSub , Complex Type PiServiceStatus , Complex Type PiServiceStatusSub , Complex Type PiStopPointETA , Complex Type PiStopPointETASub , Complex Type PiStoppointParking , Complex Type PiStoppointParkingSub , Complex Type PiTextTimetable , Complex Type PiTextTimetableSub , Complex Type PiTripItineraryList , Complex Type PiTripItineraryListSub , Complex Type SchActualRunningTimes , Complex Type SchActualRunningTimesSub , Complex Type SchBlockScheduleList , Complex Type SchBlockScheduleListSub , Complex Type SchBlockSubsets , Complex Type SchBlockSubsetsSub , Complex Type SchCalendar , Complex Type SchCalendarSub , Complex Type SchMasterScheduleVersion , Complex Type SchMasterScheduleVersionSub , Complex Type SchOperatorAssignmentList , Complex Type SchOperatorAssignmentListSub , Complex Type SchPatternList , Complex Type SchPatternListSub , Complex Type SchPullInList , Complex Type SchPullInListSub , Complex Type SchPullOutList , Complex Type SchPullOutListSub , Complex Type SchRosterList , Complex Type SchRosterListSub , Complex Type SchRouteSchedule , Complex Type SchRouteScheduleSub , Complex Type SchRunningTimeList , Complex Type SchRunningTimeListSub , Complex Type SchRunScheduleList , Complex Type SchRunScheduleListSub , Complex Type SchStopServiceList , Complex Type SchStopServiceListSub , Complex Type SchTimepointList , Complex Type SchTimepointListSub , Complex Type SchTripDetailList , Complex Type SchTripDetailListSub , Complex Type SchUnassignedOperatorList , Complex Type SchUnassignedOperatorListSub , Complex Type SchUnassignedVehicleList , Complex Type SchUnassignedVehicleListSub , Complex Type SchVehicleAssignmentList , Complex Type SchVehicleAssignmentListSub , Complex Type ScpEventLog , Complex Type ScpEventLogSub , Complex Type SpGIS , Complex Type SpGISSub , Complex Type SpLocationConversion , Complex Type SpLocationConversionSub , Complex Type SpMapImage , Complex Type SpMapImageSub , Complex Type SpRouteGeoTrace , Complex Type SpRouteGeoTraceSub , Complex Type TspPRGInputsCC , Complex Type TspPRGInputsCCSub , Complex Type TspPRGInputsPTV
Abstract no
XML Instance Representation
<...>
<requestedType> CPT-SubscriptionType </requestedType> [1]
<expirationDate> CPT-Date </expirationDate> [1]
<expirationTime> CPT-Time </expirationTime> [1]
<reportInterval> CPT-Duration </reportInterval> [0..1]
<requestIdentifier> CPT-RequestIdentifier </requestIdentifier> [1]
<subscriberIdentifier> CPT-ApplicationID </subscriberIdentifier> [1]
<publisherIdentifier> CPT-ApplicationID </publisherIdentifier> [1]
<applicability> CPTFileApplicability </applicability> [0..1]
</...>

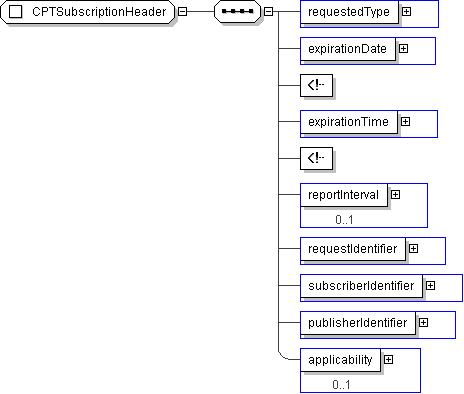

Diagram
h2033376642 h-1969881159 h-1969397032 h1782472735 h1358786157 h325764800 h325764800 h155624903
Schema Component Representation
<xs:complexType name="CPTSubscriptionHeader">
<xs:sequence>
<xs:element name="requestedType" type=" CPT-SubscriptionType "/>
<xs:element name="expirationDate" type=" CPT-Date "/>
<-- for the subscription -->
<xs:element name="expirationTime" type=" CPT-Time "/>
<-- for the subscription -->
<xs:element name="reportInterval" type=" CPT-Duration " minOccurs="0"/>
<xs:element name="requestIdentifier" type=" CPT-RequestIdentifier "/>
<xs:element name="subscriberIdentifier" type=" CPT-ApplicationID "/>
<xs:element name="publisherIdentifier" type=" CPT-ApplicationID "/>
<xs:element name="applicability" type=" CPTFileApplicability " minOccurs="0"/>
</xs:sequence>
</xs:complexType>
