Documentation for ATIS-Draft-03-00-79

Complex Type: SchRunningTimeListSub

[Table of contents]

Super-types: None
Sub-types: None
Name SchRunningTimeListSub
Used by (from the same schema document) Element schRunningTimeListSub
Abstract no
XML Instance Representation
<...>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<patternVersion> SCH-TimetableVersionID </patternVersion> [0..1]
<pattern-eff> CPT-DateTime </pattern-eff> [0..1]
<routes> [0..1]
Start Sequence [1..500]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<patterns> [0..1]
Start Sequence [1..5000]
<pattern> SCHPatternIden </pattern> [1]
End Sequence
</patterns>
<pattern-segments> [0..1]
Start Sequence [1..15000]
<pattern-segment> SCHPatternSegmentIden </pattern-segment> [1]
End Sequence
</pattern-segments>
<stoppoint-intervals> [0..1]
Start Sequence [1..15000]
<stoppoint-interval> SCHStoppointPair </stoppoint-interval> [1]
End Sequence
</stoppoint-intervals>
<timepoint-intervals> [0..1]
Start Sequence [1..1000]
<timepoint-interval> SCHTimepointInterval </timepoint-interval> [1]
End Sequence
</timepoint-intervals>
</...>

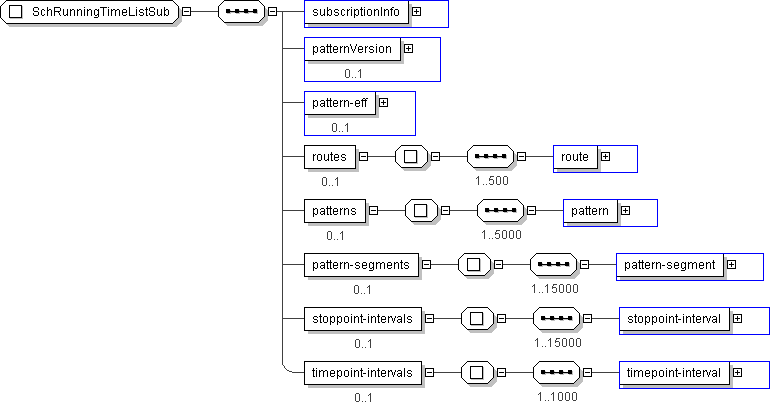

Diagram
h-527207252 h-337950068 h1272267302 h-963684166 h-1937713343 h122395130 h1921798165 h-687893611
Schema Component Representation
<xs:complexType name="SchRunningTimeListSub">
<xs:sequence>
<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>
<xs:element name="patternVersion" type=" SCH-TimetableVersionID " minOccurs="0"/>
<xs:element name="pattern-eff" type=" CPT-DateTime " minOccurs="0"/>
<xs:element name="routes" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="500">
<xs:element name="route" type=" SCHRouteIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="patterns" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="5000">
<xs:element name="pattern" type=" SCHPatternIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="pattern-segments" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="15000">
<xs:element name="pattern-segment" type=" SCHPatternSegmentIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="stoppoint-intervals" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="15000">
<xs:element name="stoppoint-interval" type=" SCHStoppointPair "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="timepoint-intervals" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="1000">
<xs:element name="timepoint-interval" type=" SCHTimepointInterval "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
