Documentation for ATIS-Draft-03-00-79

Complex Type: SCHTimepointInterval

[Table of contents]

Super-types: None
Sub-types: None
Name SCHTimepointInterval
Used by (from the same schema document) Complex Type SchRunningTimeList , Complex Type SchRunningTimeListSub
Abstract no
XML Instance Representation
<...>
<tpi-id> SCH-TimepointIntervalID </tpi-id> [0..1]
<tpi-designator> SCH-TimepointIntervalDes </tpi-designator> [0..1]
<startPointID> SCHTimepointIden </startPointID> [1]
<endPointID> SCHTimepointIden </endPointID> [1]
<location> atis:Route </location> [0..1]
<mode> CPT-Mode </mode> [0..1]
</...>

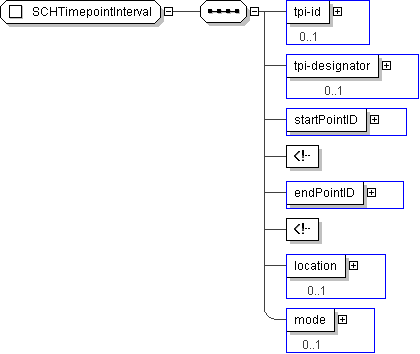

Diagram
h-1708033943 h-1409448348 h1668863444 h1668863444 h-1110646556 h-1969600082
Schema Component Representation
<xs:complexType name="SCHTimepointInterval">
<xs:sequence>
<xs:element name="tpi-id" type=" SCH-TimepointIntervalID " minOccurs="0"/>
<xs:element name="tpi-designator" type=" SCH-TimepointIntervalDes " minOccurs="0"/>
<xs:element name="startPointID" type=" SCHTimepointIden "/>
<-- terminus of interval -->
<xs:element name="endPointID" type=" SCHTimepointIden "/>
<-- terminus of interval -->
<xs:element name="location" type=" atis:Route " minOccurs="0"/>
<xs:element name="mode" type=" CPT-Mode " minOccurs="0"/>
</xs:sequence>
</xs:complexType>
