Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	Route
Used by (from the same schema document)	Complex Type RouteRequest , Complex Type ResponseGroup , Complex Type ResponseGroup , Complex Type RouteOrLocation
Abstract	no

XML Instance Representation

<...>

<head> Head </head> [0..1]

<isItinerary> xs:boolean </isItinerary> [1]

<otherEvent> im:ReferenceID </otherEvent> [0..4]

<origin> lrms:PointLocation </origin> [1]

<subroutes> SubRoute </subroutes> [0..100]

<destination> lrms:PointLocation </destination> [1]

<primeMode> Mode </primeMode> [0..1]

<estimatedTravelTime> TimeInterval </estimatedTravelTime> [0..1]

<startTime> DateTimePair </startTime> [0..1]

<endTime> DateTimePair </endTime> [0..1]

<tripTotalDistance> lrms:Distance </tripTotalDistance> [0..1]

<estimatedCost> ComplexCost </estimatedCost> [0..8]

<maps> [0..1]
Start Sequence [1..100]

<map> [1]

<mapLink> URL-Link </mapLink> [0..1]

<descr> Freetext </descr> [0..1]

</map>

End Sequence
</maps>

<localRoute> local:Route </localRoute> [0..1]

</...>

Schema Component Representation

<xs:complexType name="Route">

<xs:sequence>

<xs:element name="head" type=" Head " minOccurs="0"/>

<xs:element name="isItinerary">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<-- set true if details present -->

<xs:element name="otherEvent" type=" im:ReferenceID " minOccurs="0" maxOccurs="4"/>

<xs:element name="origin" type=" lrms:PointLocation "/>

<xs:element name="subroutes" type=" SubRoute " minOccurs="0" maxOccurs="100"/>

<xs:element name="destination" type=" lrms:PointLocation "/>

<xs:element name="primeMode" type=" Mode " minOccurs="0"/>

<-- primary mode of travel -->

<xs:element name="estimatedTravelTime" type=" TimeInterval " minOccurs="0"/>

<xs:element name="startTime" type=" DateTimePair " minOccurs="0"/>

<xs:element name="endTime" type=" DateTimePair " minOccurs="0"/>

<xs:element name="tripTotalDistance" type=" lrms:Distance " minOccurs="0"/>

<xs:element name="estimatedCost" type=" ComplexCost " minOccurs="0" maxOccurs="8"/>

<xs:element name="maps" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="map">

<xs:complexType>

<xs:sequence>

<xs:element name="mapLink" type=" URL-Link " minOccurs="0"/>

<-- Points to a graphic depicting the route or part of it. -->

<xs:element name="descr" type=" Freetext " minOccurs="0"/>

<-- A name or description for the map -->

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localRoute" type=" local:Route " minOccurs="0"/>

</xs:sequence>

</xs:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:

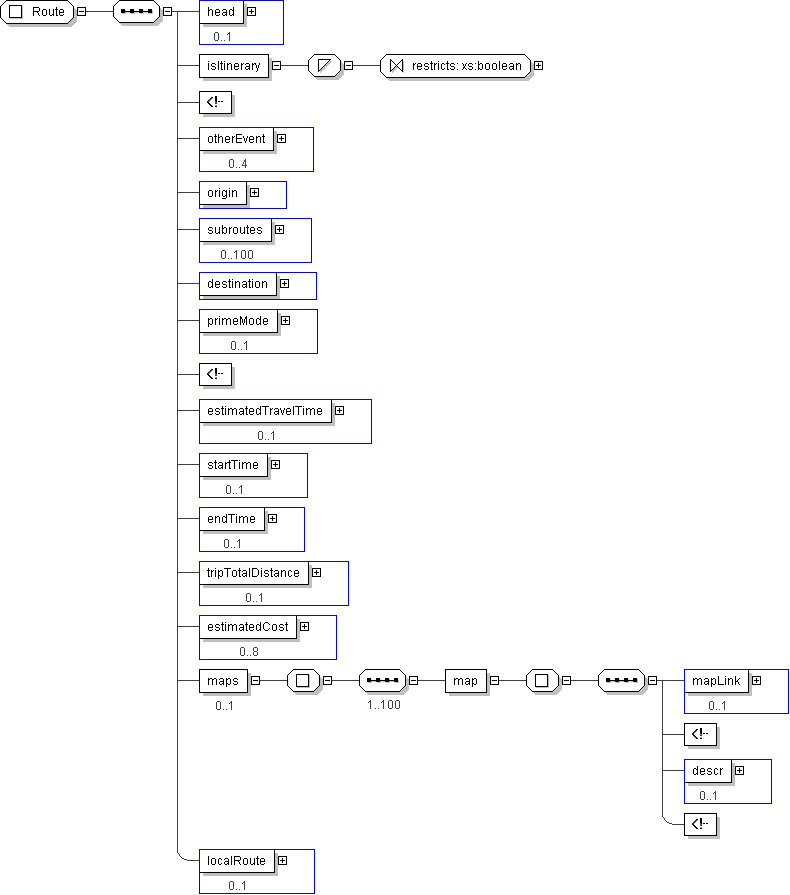

Complex Type: Route
