Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	RouteRequest
Used by (from the same schema document)	Complex Type ATISMessage , Element routeRequest
Abstract	no

XML Instance Representation

<...>

<messageHeader> MessageHeader </messageHeader> [1]

<startTime> DateTimePair </startTime> [0..1]

<arrivalTime> DateTimePair </arrivalTime> [0..1]

<routeOutline> Route </routeOutline> [1]

<preferences> TripPreferences </preferences> [0..1]

<constraints> TripConstraints </constraints> [0..1]

<tail> Tail </tail> [0..1]

<localRouteRequest> local:RouteRequest </localRouteRequest> [0..1]

</...>

Schema Component Representation

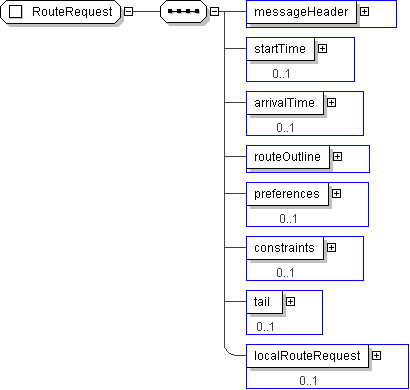

<xs:complexType name="RouteRequest">

<xs:sequence>

<xs:element name="messageHeader" type=" MessageHeader "/>

<xs:element name="startTime" type=" DateTimePair " minOccurs="0"/>

<xs:element name="arrivalTime" type=" DateTimePair " minOccurs="0"/>

<xs:element name="routeOutline" type=" Route "/>

<xs:element name="preferences" type=" TripPreferences " minOccurs="0"/>

<xs:element name="constraints" type=" TripConstraints " minOccurs="0"/>

<xs:element name="tail" type=" Tail " minOccurs="0"/>

<xs:element name="localRouteRequest" type=" local:RouteRequest " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
