Documentation for ATIS-Draft-03-00-79

Element: routeRequest

[Table of contents]

Name routeRequest
Type RouteRequest
Nillable no
Abstract no

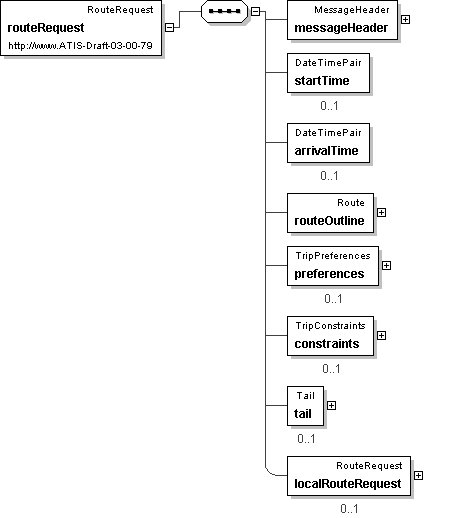

Logical Diagram
h1592882545 h1887895068 h-710426059 h-12023437 h-573191245 h-326659954
XML Instance Representation
<routeRequest>
<messageHeader> MessageHeader </messageHeader> [1]
<startTime> DateTimePair </startTime> [0..1]
<arrivalTime> DateTimePair </arrivalTime> [0..1]
<routeOutline> Route </routeOutline> [1]
<preferences> TripPreferences </preferences> [0..1]
<constraints> TripConstraints </constraints> [0..1]
<tail> Tail </tail> [0..1]
<localRouteRequest> local:RouteRequest </localRouteRequest> [0..1]
</routeRequest>

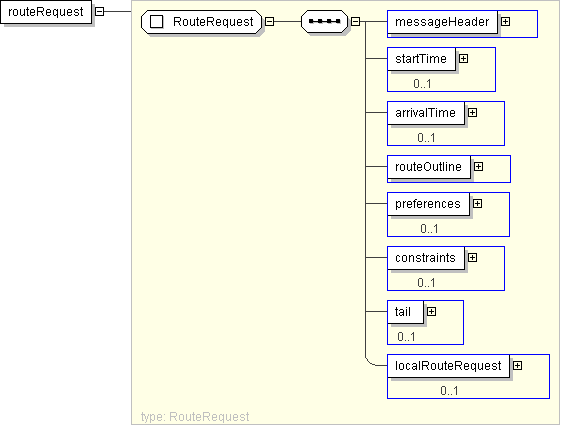

Diagram
h-431763185 h1210973722 h1210973722 h-1110646556 h-820813202 h-122410580 h518407765 h-1794465525
Schema Component Representation
<xs:element name="routeRequest" type=" RouteRequest "/>
