Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SubRoute
Used by (from the same schema document)	Complex Type Route
Abstract	no

XML Instance Representation

<...>

<name> xs:string (length >= 1) </name> [0..1]

<otherEvents> im:ReferenceID </otherEvents> [0..4]

<traffic> LinkTrafficInformation </traffic> [0..4]

<weather> WeatherInformation </weather> [0..4]

<events> ResponseGroup </events> [0..4]

<origin> lrms:PointLocation </origin> [0..1]

<originRole> PointRole </originRole> [0..1]

<segements> [1]
Start Sequence [1..50]

<segement> Segment </segement> [1]

End Sequence
</segements>

<destination> lrms:PointLocation </destination> [1]

<destinationRole> PointRole </destinationRole> [0..1]

<primeMode> Mode </primeMode> [0..1]

<estimatedTravelTime> TimeInterval </estimatedTravelTime> [0..1]

<startTime> DateTimePair </startTime> [0..1]

<endTime> DateTimePair </endTime> [0..1]

<tripTotalDistance> lrms:Distance </tripTotalDistance> [0..1]

<estimatedCost> ComplexCost </estimatedCost> [0..8]

<localSubRoute> local:SubRoute </localSubRoute> [0..1]

</...>

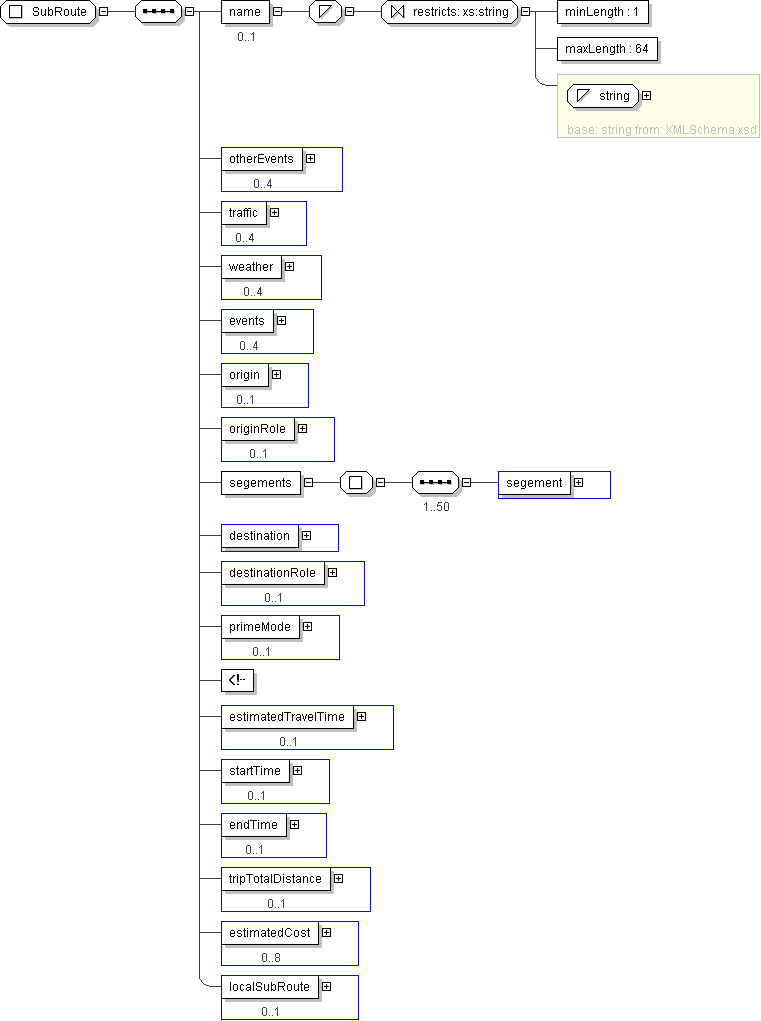

Schema Component Representation

<xs:complexType name="SubRoute">

<xs:sequence>

<xs:element name="name" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:minLength value="1"/>

<xs:maxLength value="64"/>

</xs:restriction>

</xs:simpleType>

</xs:element>

<xs:element name="otherEvents" type=" im:ReferenceID " minOccurs="0" maxOccurs="4"/>

<xs:element name="traffic" type=" LinkTrafficInformation " minOccurs="0" maxOccurs="4"/>

<xs:element name="weather" type=" WeatherInformation " minOccurs="0" maxOccurs="4"/>

<xs:element name="events" type=" ResponseGroup " minOccurs="0" maxOccurs="4"/>

<xs:element name="origin" type=" lrms:PointLocation " minOccurs="0"/>

<xs:element name="originRole" type=" PointRole " minOccurs="0"/>

<xs:element name="segements">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="50">

<xs:element name="segement" type=" Segment "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="destination" type=" lrms:PointLocation "/>

<xs:element name="destinationRole" type=" PointRole " minOccurs="0"/>

<xs:element name="primeMode" type=" Mode " minOccurs="0"/>

<-- primary mode of travel -->

<xs:element name="estimatedTravelTime" type=" TimeInterval " minOccurs="0"/>

<xs:element name="startTime" type=" DateTimePair " minOccurs="0"/>

<xs:element name="endTime" type=" DateTimePair " minOccurs="0"/>

<xs:element name="tripTotalDistance" type=" lrms:Distance " minOccurs="0"/>

<xs:element name="estimatedCost" type=" ComplexCost " minOccurs="0" maxOccurs="8"/>

<xs:element name="localSubRoute" type=" local:SubRoute " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
