Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	Segment
Used by (from the same schema document)	Complex Type SubRoute
Abstract	no

XML Instance Representation

<...>

<boardingInstructions> BoardingInstructions </boardingInstructions> [0..1]

<otherEvents> im:ReferenceID </otherEvents> [0..4]

<beginAmenities> AmenitiesList </beginAmenities> [0..16]

<vehicleAmenities> AmenitiesList </vehicleAmenities> [0..16]

<endAmenities> AmenitiesList </endAmenities> [0..16]

<segmentDesc> Freetext </segmentDesc> [0..1]

<midPoints> [1]
Start Sequence [0..100]

<midPoint> [1]
Start Choice [1]

<shapepoint> ShapePoint </shapepoint> [1]

<waypoints> lrms:PointLocation </waypoints> [1]

End Choice
</midPoint>

End Sequence
</midPoints>

<actionRequired> [1]
Start Choice [1]

<maneuverInstructions> ManeuverInstruction </maneuverInstructions> [1]

<parkingInstructions> ParkingInstructions </parkingInstructions> [1]

End Choice
</actionRequired>

<endPoint> lrms:PointLocation </endPoint> [1]

<endPointRole> PointRole </endPointRole> [1]

<distance> lrms:Distance </distance> [0..1]

<equipClase> EquipmentClass </equipClase> [0..1]

<equipType> EquipmentClass </equipType> [0..1]

<equipFreeText> xs:string (length >= 1) </equipFreeText> [0..1]

<primeMode> Mode </primeMode> [0..1]

<estimatedTravelTime> TimeInterval </estimatedTravelTime> [0..1]

<startTime> DateTimePair </startTime> [0..1]

<endTime> DateTimePair </endTime> [0..1]

<estimatedCost> ComplexCost </estimatedCost> [0..8]

<localSegment> local:Segment </localSegment> [0..1]

</...>

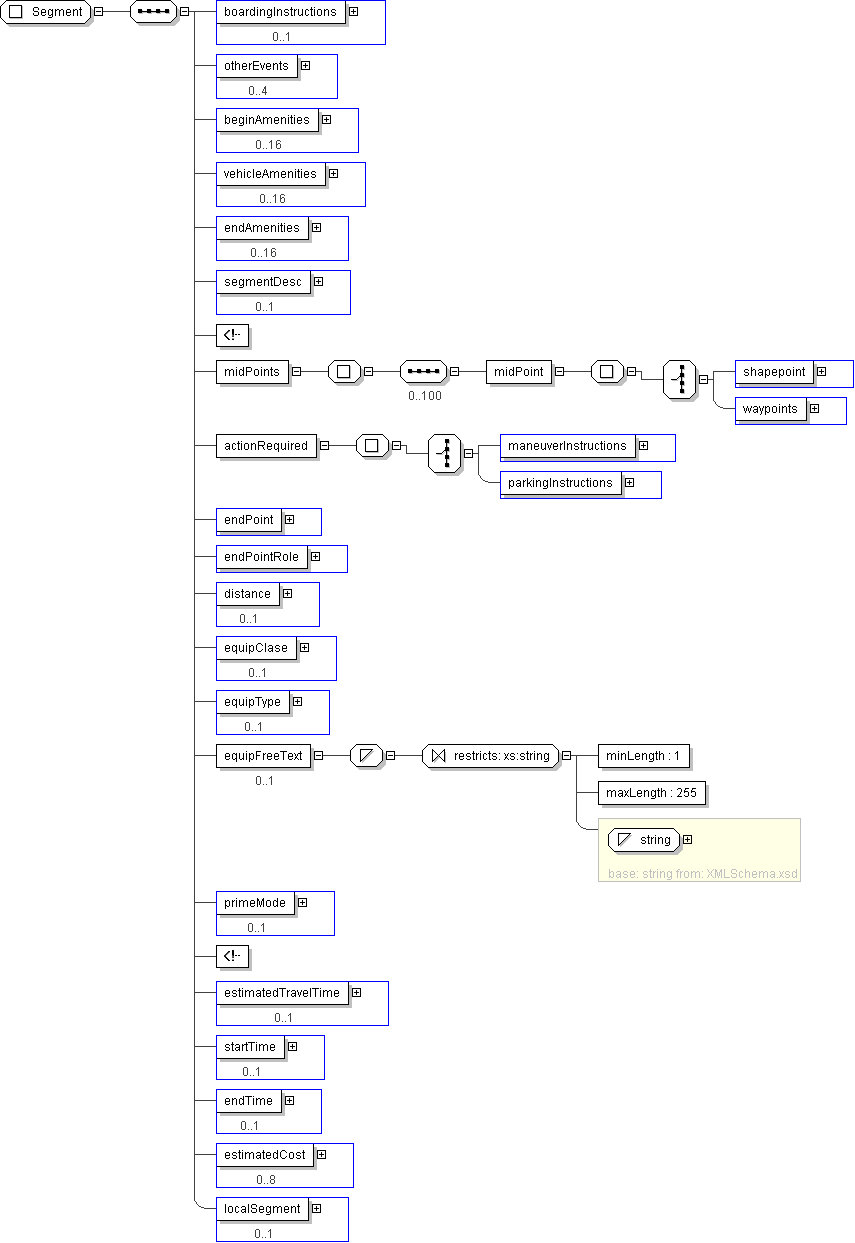

Schema Component Representation

<xs:complexType name="Segment">

<xs:sequence>

<xs:element name="boardingInstructions" type=" BoardingInstructions " minOccurs="0"/>

<xs:element name="otherEvents" type=" im:ReferenceID " minOccurs="0" maxOccurs="4"/>

<xs:element name="beginAmenities" type=" AmenitiesList " minOccurs="0" maxOccurs="16"/>

<xs:element name="vehicleAmenities" type=" AmenitiesList " minOccurs="0" maxOccurs="16"/>

<xs:element name="endAmenities" type=" AmenitiesList " minOccurs="0" maxOccurs="16"/>

<xs:element name="segmentDesc" type=" Freetext " minOccurs="0"/>

<-- description of the segment, such as bike path, dirt road -->

<xs:element name="midPoints">

<xs:complexType>

<xs:sequence minOccurs="0" maxOccurs="100">

<xs:element name="midPoint">

<xs:complexType>

<xs:choice>

<xs:element name="shapepoint" type=" ShapePoint "/>

<xs:element name="waypoints" type=" lrms:PointLocation "/>

</xs:choice>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="actionRequired">

<xs:complexType>

<xs:choice>

<xs:element name="maneuverInstructions" type=" ManeuverInstruction "/>

<xs:element name="parkingInstructions" type=" ParkingInstructions "/>

</xs:choice>

</xs:complexType>

</xs:element>

<xs:element name="endPoint" type=" lrms:PointLocation "/>

<xs:element name="endPointRole" type=" PointRole "/>

<xs:element name="distance" type=" lrms:Distance " minOccurs="0"/>

<xs:element name="equipClase" type=" EquipmentClass " minOccurs="0"/>

<xs:element name="equipType" type=" EquipmentClass " minOccurs="0"/>

<xs:element name="equipFreeText" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:minLength value="1"/>

<xs:maxLength value="255"/>

</xs:restriction>

</xs:simpleType>

</xs:element>

<xs:element name="primeMode" type=" Mode " minOccurs="0"/>

<-- primary mode of travel -->

<xs:element name="estimatedTravelTime" type=" TimeInterval " minOccurs="0"/>

<xs:element name="startTime" type=" DateTimePair " minOccurs="0"/>

<xs:element name="endTime" type=" DateTimePair " minOccurs="0"/>

<xs:element name="estimatedCost" type=" ComplexCost " minOccurs="0" maxOccurs="8"/>

<xs:element name="localSegment" type=" local:Segment " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
