Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	ParkingInstructions
Used by (from the same schema document)	Complex Type Segment
Abstract	no

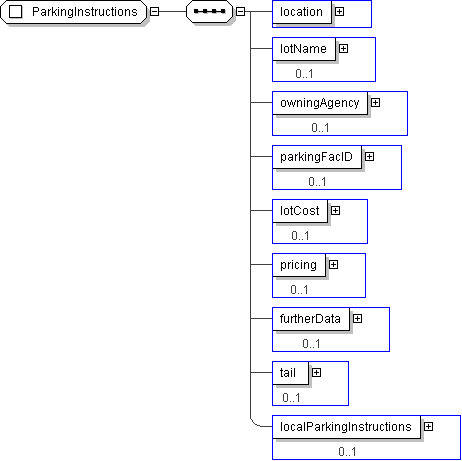

XML Instance Representation

<...>

<location> lrms:LocationReference </location> [1]

<lotName> Freetext </lotName> [0..1]

<owningAgency> tmdd:Organization-resource-identifier </owningAgency> [0..1]

<parkingFacID> tcip:PI-ParkingFacID </parkingFacID> [0..1]

<lotCost> ComplexCost </lotCost> [0..1]

<pricing> PriceSchedule </pricing> [0..1]

<furtherData> URL-Link </furtherData> [0..1]

<tail> Tail </tail> [0..1]

<localParkingInstructions> local:ParkingInstructions </localParkingInstructions> [0..1]

</...>

Schema Component Representation

<xs:complexType name="ParkingInstructions">

<xs:sequence>

<xs:element name="location" type=" lrms:LocationReference "/>

<xs:element name="lotName" type=" Freetext " minOccurs="0"/>

<xs:element name="owningAgency" type=" tmdd:Organization-resource-identifier " minOccurs="0"/>

<xs:element name="parkingFacID" type=" tcip:PI-ParkingFacID " minOccurs="0"/>

<xs:element name="lotCost" type=" ComplexCost " minOccurs="0"/>

<xs:element name="pricing" type=" PriceSchedule " minOccurs="0"/>

<xs:element name="furtherData" type=" URL-Link " minOccurs="0"/>

<xs:element name="tail" type=" Tail " minOccurs="0"/>

<xs:element name="localParkingInstructions" type=" local:ParkingInstructions " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
