Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	PriceSchedule
Used by (from the same schema document)	Complex Type ParkingInstructions , Complex Type ParkingLotInformation
Abstract	no

XML Instance Representation

<...>

<start> DateTimePair </start> [0..1]

<end> DateTimePair </end> [0..1]

<entry> PriceScheduleEntry </entry> [1..100]

</...>

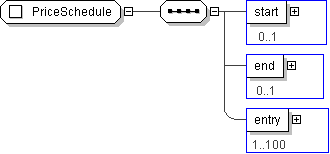

Diagram

Schema Component Representation

<xs:complexType name="PriceSchedule">

<xs:sequence>

<xs:element name="start" type=" DateTimePair " minOccurs="0"/>

<xs:element name="end" type=" DateTimePair " minOccurs="0"/>

<xs:element name="entry" type=" PriceScheduleEntry " minOccurs="1" maxOccurs="100"/>

</xs:sequence>

</xs:complexType>
