Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	ParkingLotInformation
Used by (from the same schema document)	Complex Type ResponseGroup
Abstract	no

XML Instance Representation

<...>

<messageHeader> MessageHeader </messageHeader> [1]

<head> Head </head> [0..1]

<location> lrms:LocationReference </location> [1]

<isForecast> xs:boolean </isForecast> [0..1]

<coverageTime> ComplexTime </coverageTime> [0..1]

<forecastExpires> DateTimePair </forecastExpires> [0..1]

<lot-ident> IdentityOrLocation </lot-ident> [1]

<owningAgency> tmdd:Organization-resource-identifier </owningAgency> [0..1]

<parkingFacID> tcip:PI-ParkingFacID </parkingFacID> [0..1]

<parkingType> tcip:PI-ParkingType </parkingType> [1]

<percentFull> Percent </percentFull> [0..1]

<lotDetail> LotInformation </lotDetail> [1]

<prices> PriceSchedule </prices> [0..1]

<generalStatus> itis:ITIScodesAndText </generalStatus> [0..1]

<furtherData> URL-Link </furtherData> [0..1]

<tail> Tail </tail> [0..1]

<localParkingLotInformation> local:ParkingLotInformation </localParkingLotInformation> [0..1]

</...>

Schema Component Representation

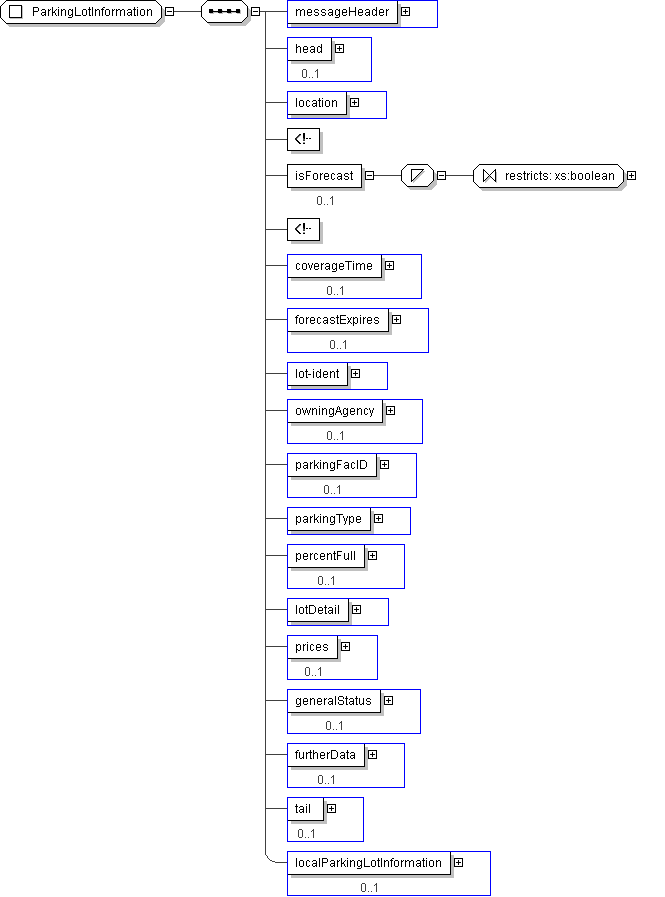

<xs:complexType name="ParkingLotInformation">

<xs:sequence>

<xs:element name="messageHeader" type=" MessageHeader "/>

<xs:element name="head" type=" Head " minOccurs="0"/>

<xs:element name="location" type=" lrms:LocationReference "/>

<-- location for which this applies -->

<xs:element name="isForecast" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<-- forecast or predicted period -->

<xs:element name="coverageTime" type=" ComplexTime " minOccurs="0"/>

<xs:element name="forecastExpires" type=" DateTimePair " minOccurs="0"/>

<xs:element name="lot-ident" type=" IdentityOrLocation "/>

<xs:element name="owningAgency" type=" tmdd:Organization-resource-identifier " minOccurs="0"/>

<xs:element name="parkingFacID" type=" tcip:PI-ParkingFacID " minOccurs="0"/>

<xs:element name="parkingType" type=" tcip:PI-ParkingType "/>

<xs:element name="percentFull" type=" Percent " minOccurs="0"/>

<xs:element name="lotDetail" type=" LotInformation "/>

<xs:element name="prices" type=" PriceSchedule " minOccurs="0"/>

<xs:element name="generalStatus" type=" itis:ITIScodesAndText " minOccurs="0"/>

<xs:element name="furtherData" type=" URL-Link " minOccurs="0"/>

<xs:element name="tail" type=" Tail " minOccurs="0"/>

<xs:element name="localParkingLotInformation" type=" local:ParkingLotInformation " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
