Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	ResponseGroup
Used by (from the same schema document)	Complex Type AdvisoryInformation , Complex Type InformationResponse , Complex Type SubRoute
Abstract	no

XML Instance Representation

<...>

<head> Head </head> [0..1]

<coverageArea> lrms:LocationReference </coverageArea> [0..1]

<weatherReport> WeatherInformation </weatherReport> [0..100]

<incident> IncidentInformation </incident> [0..100]

<event> EventInformation </event> [0..100]

<flight> AirlineTravelInformation </flight> [0..100]

<route> Route </route> [0..100]

<detour> Route </detour> [0..100]

<parkingLot> ParkingLotInformation </parkingLot> [0..100]

<dsrcMsg> RoadSideAlert </dsrcMsg> [0..100]

<transit> TransitInformation </transit> [0..100]

<furtherData> URL-Link </furtherData> [0..1]

<tail> Tail </tail> [0..1]

<localResponseGroup> local:ResponseGroup </localResponseGroup> [0..1]

</...>

Schema Component Representation

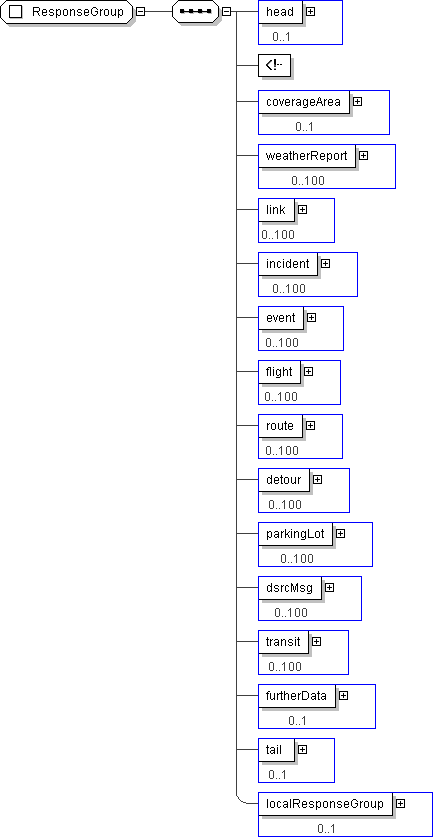

<xs:complexType name="ResponseGroup">

<xs:sequence>

<xs:element name="head" type=" Head " minOccurs="0"/>

<-- basic meta data for the whole group -->

<xs:element name="coverageArea" type=" lrms:LocationReference " minOccurs="0"/>

<xs:element name="weatherReport" type=" WeatherInformation " minOccurs="0" maxOccurs="100"/>

<xs:element name="link" type=" LinkTrafficInformation " minOccurs="0" maxOccurs="100"/>

<xs:element name="incident" type=" IncidentInformation " minOccurs="0" maxOccurs="100"/>

<xs:element name="event" type=" EventInformation " minOccurs="0" maxOccurs="100"/>

<xs:element name="flight" type=" AirlineTravelInformation " minOccurs="0" maxOccurs="100"/>

<xs:element name="route" type=" Route " minOccurs="0" maxOccurs="100"/>

<xs:element name="detour" type=" Route " minOccurs="0" maxOccurs="100"/>

<xs:element name="parkingLot" type=" ParkingLotInformation " minOccurs="0" maxOccurs="100"/>

<xs:element name="dsrcMsg" type=" RoadSideAlert " minOccurs="0" maxOccurs="100"/>

<xs:element name="transit" type=" TransitInformation " minOccurs="0" maxOccurs="100"/>

<xs:element name="furtherData" type=" URL-Link " minOccurs="0"/>

<xs:element name="tail" type=" Tail " minOccurs="0"/>

<xs:element name="localResponseGroup" type=" local:ResponseGroup " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
