Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	EventInformation
Used by (from the same schema document)	Complex Type ResponseGroup
Abstract	no

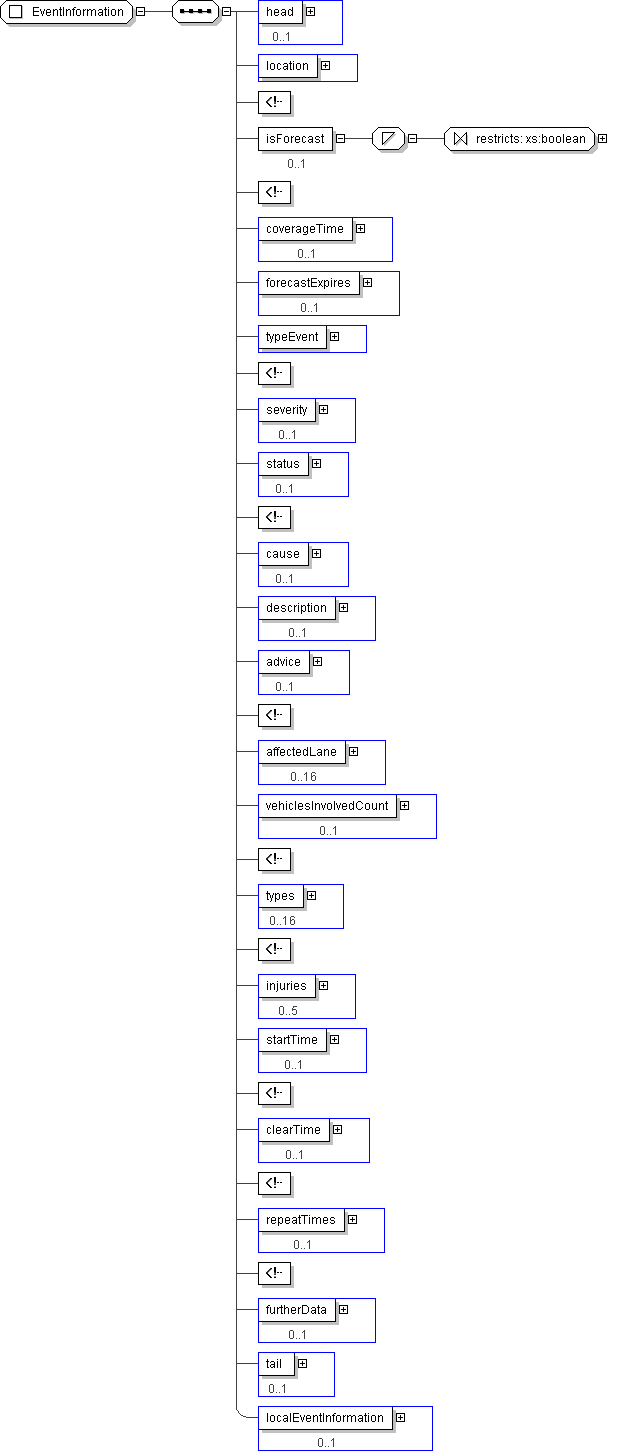

XML Instance Representation

<...>

<head> Head </head> [0..1]

<location> lrms:LocationReference </location> [1]

<isForecast> xs:boolean </isForecast> [0..1]

<coverageTime> ComplexTime </coverageTime> [0..1]

<forecastExpires> DateTimePair </forecastExpires> [0..1]

<typeEvent> itis:ITISEventType </typeEvent> [1]

<severity> tmdd:Event-incident-severity </severity> [0..1]

<status> itis:IncidentResponseStatus </status> [0..1]

<cause> itis:ITIScodesAndText </cause> [0..1]

<description> itis:ITIScodesAndText </description> [0..1]

<advice> itis:ITIScodesAndText </advice> [0..1]

<affectedLane> im:LaneDescription </affectedLane> [0..16]

<vehiclesInvolvedCount> tmdd:Event-incident-vehicles-involved-count </vehiclesInvolvedCount> [0..1]

<types> VehiclesInvolved </types> [0..16]

<injuries> im:InjuryCounts </injuries> [0..5]

<startTime> DateTimePair </startTime> [0..1]

<clearTime> DateTimePair </clearTime> [0..1]

<repeatTimes> ComplexTime </repeatTimes> [0..1]

<furtherData> URL-Link </furtherData> [0..1]

<tail> Tail </tail> [0..1]

<localEventInformation> local:EventInformation </localEventInformation> [0..1]

</...>

Schema Component Representation

<xs:complexType name="EventInformation">

<xs:sequence>

<xs:element name="head" type=" Head " minOccurs="0"/>

<xs:element name="location" type=" lrms:LocationReference "/>

<-- location for which this applies -->

<xs:element name="isForecast" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<-- forecast or predicted period -->

<xs:element name="coverageTime" type=" ComplexTime " minOccurs="0"/>

<xs:element name="forecastExpires" type=" DateTimePair " minOccurs="0"/>

<xs:element name="typeEvent" type=" itis:ITISEventType "/>

<-- a catagory and an item from that catagory all ITS stds use the same types here -->

<xs:element name="severity" type=" tmdd:Event-incident-severity " minOccurs="0"/>

<xs:element name="status" type=" itis:IncidentResponseStatus " minOccurs="0"/>

<-- status of the event (from ITIS) -->

<xs:element name="cause" type=" itis:ITIScodesAndText " minOccurs="0"/>

<xs:element name="description" type=" itis:ITIScodesAndText " minOccurs="0"/>

<xs:element name="advice" type=" itis:ITIScodesAndText " minOccurs="0"/>

<-- current relevent information in text and codes -->

<xs:element name="affectedLane" type=" im:LaneDescription " minOccurs="0" maxOccurs="16"/>

<xs:element name="vehiclesInvolvedCount" type=" tmdd:Event-incident-vehicles-involved-count " minOccurs="0"/>

<-- the number of vehicles -->

<xs:element name="types" type=" VehiclesInvolved " minOccurs="0" maxOccurs="16"/>

<-- the types of vehicles and a count of each -->

<xs:element name="injuries" type=" im:InjuryCounts " minOccurs="0" maxOccurs="5"/>

<xs:element name="startTime" type=" DateTimePair " minOccurs="0"/>

<-- point in time this event started -->

<xs:element name="clearTime" type=" DateTimePair " minOccurs="0"/>

<-- an estimated clear time -->

<xs:element name="repeatTimes" type=" ComplexTime " minOccurs="0"/>

<-- a set of repeating times for events which re-occur over a periods of days -->

<xs:element name="furtherData" type=" URL-Link " minOccurs="0"/>

<xs:element name="tail" type=" Tail " minOccurs="0"/>

<xs:element name="localEventInformation" type=" local:EventInformation " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
