Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	IncidentResponseStatus
Used by (from the same schema document)	Complex Type ITISEventType
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 2816 <= value <= 3071 Locally defined type: Base XSD Type: string value comes from list: {'unconfirmed report'\|'initial response en route'\|'follow up response en route'\|'initial response on scene'\|'follow up response on scene'\|'confirmed report'\|'scene is unsecured at this time'\|'response scene secured'\|'rescue and recovery work in progress'\|'extraction in progress'\|'clearance work in progress'\|'body removal operations'\|'fire containment contained'\|'fire containment not contained'\|'event cleared'\|'traffic clearing'\|'incident closed'} Locally defined type: Base XSD Type: string pattern = \[.+\].* Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}

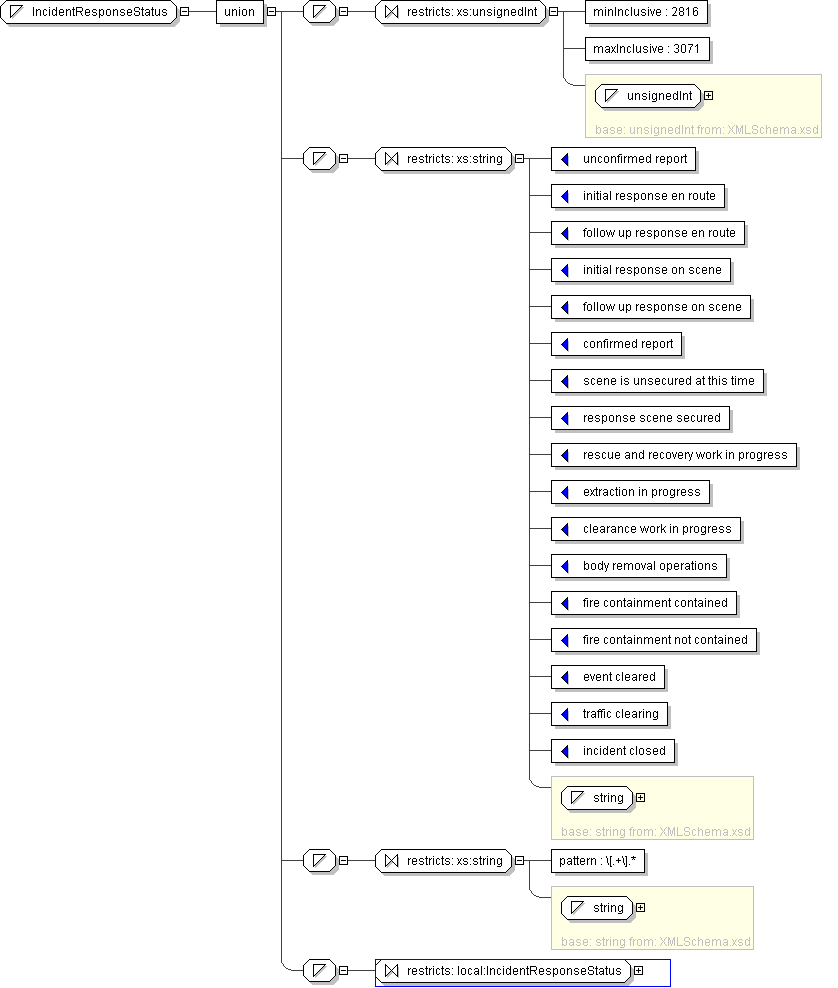

Schema Component Representation

<xs:simpleType name="IncidentResponseStatus">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="2816"/>

<xs:maxInclusive value="3071"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="unconfirmed report" id="_2817"/>

<xs:enumeration value="initial response en route" id="_2818"/>

<xs:enumeration value="follow up response en route" id="_2819"/>

<xs:enumeration value="initial response on scene" id="_2820"/>

<xs:enumeration value="follow up response on scene" id="_2821"/>

<xs:enumeration value="confirmed report" id="_2822"/>

<xs:enumeration value="scene is unsecured at this time" id="_2823"/>

<xs:enumeration value="response scene secured" id="_2824"/>

<xs:enumeration value="rescue and recovery work in progress" id="_2825"/>

<xs:enumeration value="extraction in progress" id="_2826"/>

<xs:enumeration value="clearance work in progress" id="_2827"/>

<xs:enumeration value="body removal operations" id="_2828"/>

<xs:enumeration value="fire containment contained" id="_2829"/>

<xs:enumeration value="fire containment not contained" id="_2830"/>

<xs:enumeration value="event cleared" id="_2831"/>

<xs:enumeration value="traffic clearing" id="_2832"/>

<xs:enumeration value="incident closed" id="_2833"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:pattern value="\[.+\].*"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:IncidentResponseStatus "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
