Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

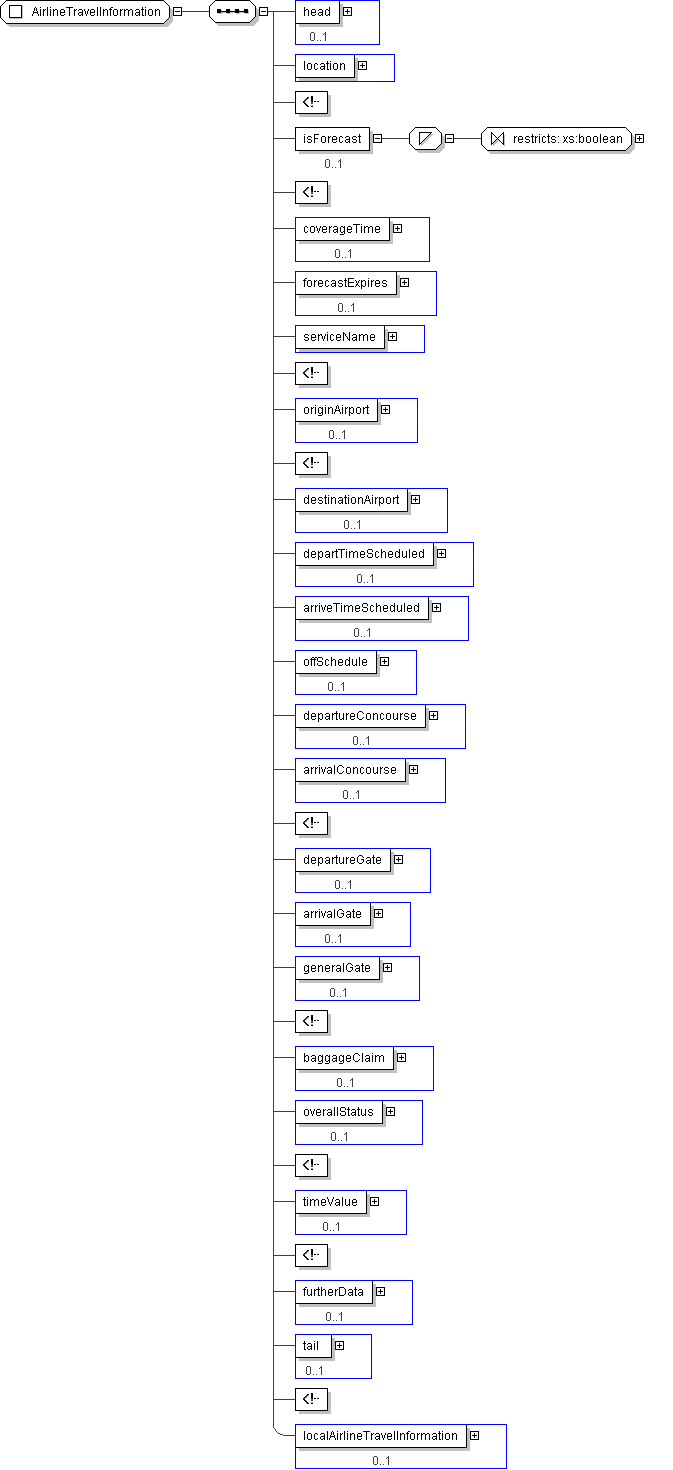

Name	AirlineTravelInformation
Used by (from the same schema document)	Complex Type ResponseGroup
Abstract	no

XML Instance Representation

<...>

<head> Head </head> [0..1]

<location> lrms:LocationReference </location> [1]

<isForecast> xs:boolean </isForecast> [0..1]

<coverageTime> ComplexTime </coverageTime> [0..1]

<forecastExpires> DateTimePair </forecastExpires> [0..1]

<serviceName> Name </serviceName> [1]

<originAirport> AirportCode </originAirport> [0..1]

<destinationAirport> AirportCode </destinationAirport> [0..1]

<departTimeScheduled> DateTimePair </departTimeScheduled> [0..1]

<arriveTimeScheduled> DateTimePair </arriveTimeScheduled> [0..1]

<offSchedule> tcip:PI-OffSchedule </offSchedule> [0..1]

<departureConcourse> Flight-GateNumber </departureConcourse> [0..1]

<arrivalConcourse> Flight-GateNumber </arrivalConcourse> [0..1]

<departureGate> Flight-GateNumber </departureGate> [0..1]

<arrivalGate> Flight-GateNumber </arrivalGate> [0..1]

<generalGate> Flight-GateNumber </generalGate> [0..1]

<baggageClaim> Flight-GateNumber </baggageClaim> [0..1]

<overallStatus> itis:DelayStatusCancellation </overallStatus> [0..1]

<timeValue> TimeInterval </timeValue> [0..1]

<furtherData> URL-Link </furtherData> [0..1]

<tail> Tail </tail> [0..1]

<localAirlineTravelInformation> local:AirlineTravelInformation </localAirlineTravelInformation> [0..1]

</...>

Schema Component Representation

<xs:complexType name="AirlineTravelInformation">

<xs:sequence>

<xs:element name="head" type=" Head " minOccurs="0"/>

<xs:element name="location" type=" lrms:LocationReference "/>

<-- location for which this applies -->

<xs:element name="isForecast" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<-- forecast or predicted period -->

<xs:element name="coverageTime" type=" ComplexTime " minOccurs="0"/>

<xs:element name="forecastExpires" type=" DateTimePair " minOccurs="0"/>

<xs:element name="serviceName" type=" Name "/>

<-- flight or service name -->

<xs:element name="originAirport" type=" AirportCode " minOccurs="0"/>

<-- OPTIONAL when the origin is known, such as an all departing flight sign board -->

<xs:element name="destinationAirport" type=" AirportCode " minOccurs="0"/>

<xs:element name="departTimeScheduled" type=" DateTimePair " minOccurs="0"/>

<xs:element name="arriveTimeScheduled" type=" DateTimePair " minOccurs="0"/>

<xs:element name="offSchedule" type=" tcip:PI-OffSchedule " minOccurs="0"/>

<xs:element name="departureConcourse" type=" Flight-GateNumber " minOccurs="0"/>

<xs:element name="arrivalConcourse" type=" Flight-GateNumber " minOccurs="0"/>

<-- used only when needed in large airports with overlapping gate mumbering systems -->

<xs:element name="departureGate" type=" Flight-GateNumber " minOccurs="0"/>

<xs:element name="arrivalGate" type=" Flight-GateNumber " minOccurs="0"/>

<xs:element name="generalGate" type=" Flight-GateNumber " minOccurs="0"/>

<-- use with commuter flights when multiple flights all leave from the same gate/area -->

<xs:element name="baggageClaim" type=" Flight-GateNumber " minOccurs="0"/>

<xs:element name="overallStatus" type=" itis:DelayStatusCancellation " minOccurs="0"/>

<-- use "Regular service" when conditions are normal -->

<xs:element name="timeValue" type=" TimeInterval " minOccurs="0"/>

<-- if status is a type of delay this provides the current estimate of time, if travel time is used in the ITIS codes this provides a trip duration (units are minutes in all uses) -->

<xs:element name="furtherData" type=" URL-Link " minOccurs="0"/>

<xs:element name="tail" type=" Tail " minOccurs="0"/>

<-- linkages to related event messages such as weather would be inserted in the references of the header section -->

<xs:element name="localAirlineTravelInformation" type=" local:AirlineTravelInformation " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
