Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	BoardingInstructions
Used by (from the same schema document)	Complex Type Segment
Abstract	no

XML Instance Representation

<...>

<boardingTime> DateTimePair </boardingTime> [0..1]

<departureTime> DateTimePair </departureTime> [0..1]

<arrivalTime> DateTimePair </arrivalTime> [0..1]

<platformNumber> Flight-GateNumber </platformNumber> [0..1]

<gateNumber> Flight-GateNumber </gateNumber> [0..1]

<stoppoint> tcip:CPTStoppointIden </stoppoint> [0..1]

<routeName> Name </routeName> [0..1]

<estimatedDelay> TimeInterval </estimatedDelay> [0..1]

<getTransfer> xs:boolean </getTransfer> [0..1]

<overallStatus> itis:DelayStatusCancellation </overallStatus> [0..1]

<agencyName> Freetext </agencyName> [0..1]

<agencyID> tmdd:Organization-resource-identifier </agencyID> [0..1]

<furtherData> URL-Link </furtherData> [0..1]

<tail> Tail </tail> [0..1]

</...>

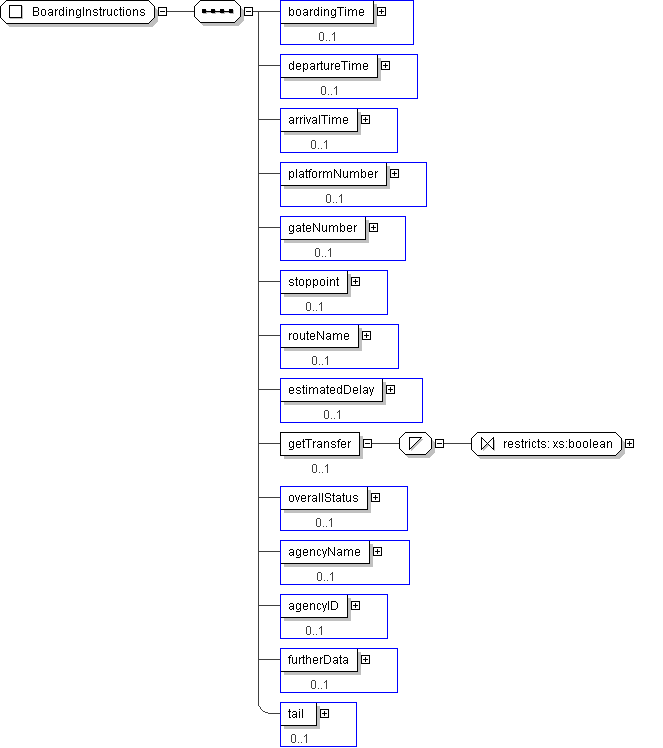

Schema Component Representation

<xs:complexType name="BoardingInstructions">

<xs:sequence>

<xs:element name="boardingTime" type=" DateTimePair " minOccurs="0"/>

<xs:element name="departureTime" type=" DateTimePair " minOccurs="0"/>

<xs:element name="arrivalTime" type=" DateTimePair " minOccurs="0"/>

<xs:element name="platformNumber" type=" Flight-GateNumber " minOccurs="0"/>

<xs:element name="gateNumber" type=" Flight-GateNumber " minOccurs="0"/>

<xs:element name="stoppoint" type=" tcip:CPTStoppointIden " minOccurs="0"/>

<xs:element name="routeName" type=" Name " minOccurs="0"/>

<xs:element name="estimatedDelay" type=" TimeInterval " minOccurs="0"/>

<xs:element name="getTransfer" minOccurs="0">

<xs:simpleType>

<xs:restriction base=" xs:boolean "/>

</xs:simpleType>

</xs:element>

<xs:element name="overallStatus" type=" itis:DelayStatusCancellation " minOccurs="0"/>

<xs:element name="agencyName" type=" Freetext " minOccurs="0"/>

<xs:element name="agencyID" type=" tmdd:Organization-resource-identifier " minOccurs="0"/>

<xs:element name="furtherData" type=" URL-Link " minOccurs="0"/>

<xs:element name="tail" type=" Tail " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
