Complex Type: ManeuverInstruction

[Table of contents]

Super-types: None
Sub-types: None
Name ManeuverInstruction
Used by (from the same schema document) Complex Type Segment
Abstract no
XML Instance Representation
<...>
<maneuverLocationType> ManeuverLocationType </maneuverLocationType> [0..1]
<instructions> [1]
Start Sequence [1..3]
<instruction> [1]
Start Choice [1]
<turn> TurnType </turn> [1]
<merge> TurnType </merge> [1]
<branch> TurnType </branch> [1]
<exit> TurnType </exit> [1]
<continue> TurnType </continue> [1]
<payToll> Cost </payToll> [1]
<takeElevator> VerticalType </takeElevator> [1]
<takeEscalator> VerticalType </takeEscalator> [1]
<takeStairs> VerticalType </takeStairs> [1]
<board> Mode </board> [1]
<alight> Mode </alight> [1]
<getTransfer> tcip:CPTStoppointIden </getTransfer> [1]
<localManeuverInstruction> local:ManeuverInstruction </localManeuverInstruction> [0..1]
End Choice
</instruction>
End Sequence
</instructions>
<descripton> Freetext </descripton> [0..1]
<distance> lrms:Distance </distance> [0..1]
<outboundRoad> Freetext </outboundRoad> [0..1]
<maneuversign> Freetext </maneuversign> [0..1]
<direction> CompassDirection </direction> [0..1]
<localManeuverInstruction2> local:ManeuverInstruction2 </localManeuverInstruction2> [0..1]
</...>

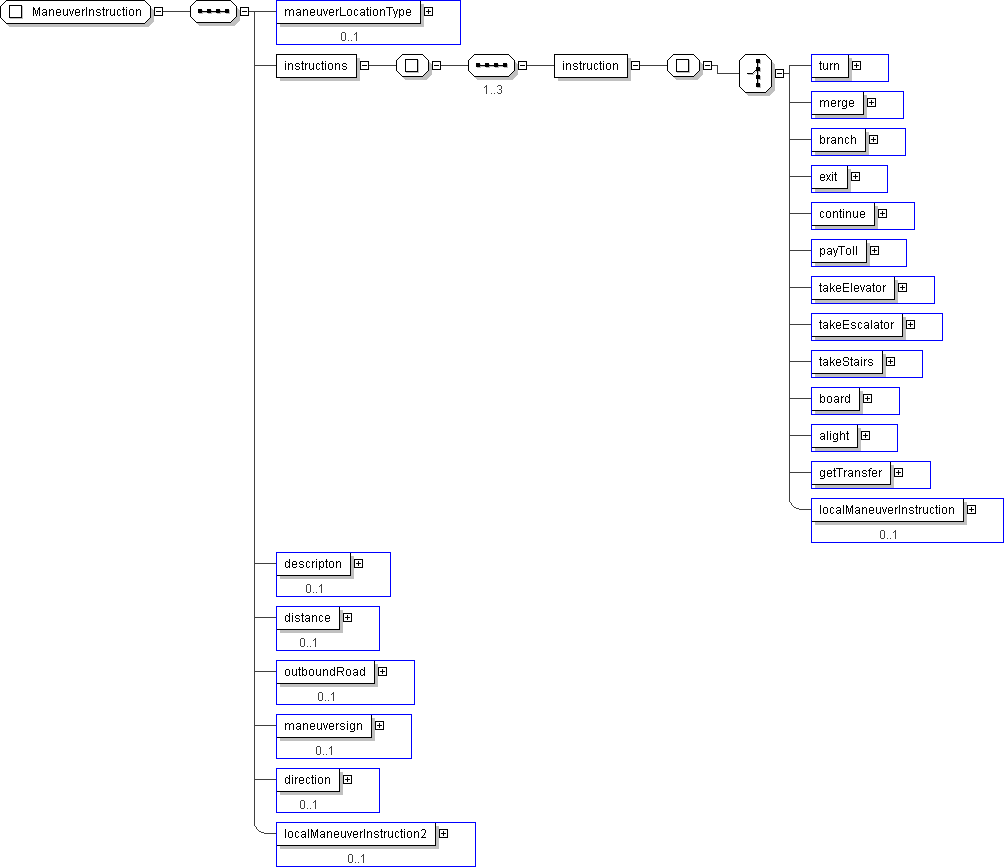

Diagram
