Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CompassDirection
Used by (from the same schema document)	Complex Type ManeuverInstruction , Complex Type WeatherInformation
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 7998 <= value <= 8005 Locally defined type: Base XSD Type: string value comes from list: {'north'\|'south'\|'east'\|'west'\|'northeast'\|'northwest'\|'southeast'\|'southwest'}
Documentation	Compass Points
Application Data	north (7998) south (7999) east (8000) west (8001) northeast (8002) northwest (8003) southeast (8004) southwest (8005)

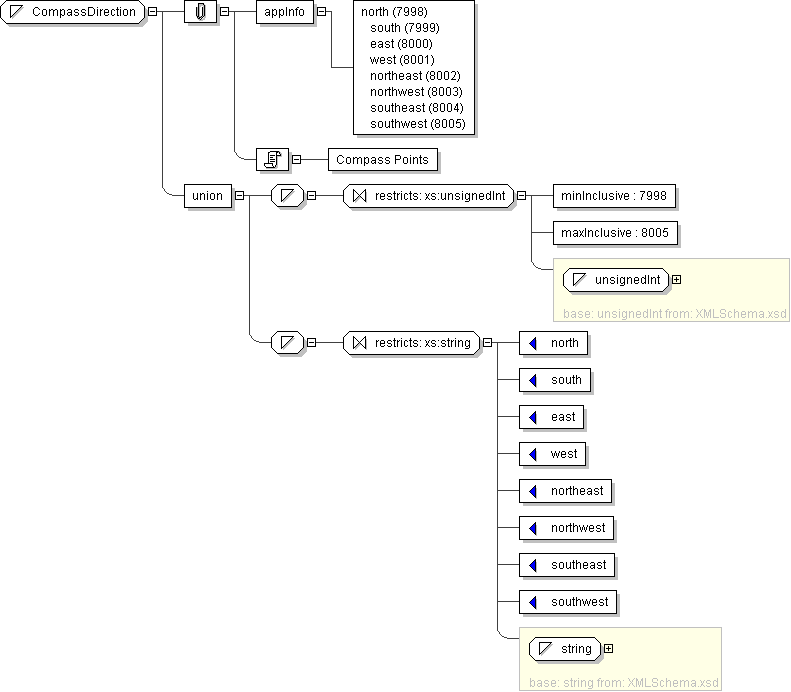

Schema Component Representation

<xs:simpleType name="CompassDirection">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="7998"/>

<xs:maxInclusive value="8005"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="north"/>

<xs:enumeration value="south"/>

<xs:enumeration value="east"/>

<xs:enumeration value="west"/>

<xs:enumeration value="northeast"/>

<xs:enumeration value="northwest"/>

<xs:enumeration value="southeast"/>

<xs:enumeration value="southwest"/>

</xs:restriction>

</xs:simpleType>

</xs:union>

</xs:simpleType>
