Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	ShapePoint
Used by (from the same schema document)	Complex Type Segment
Abstract	no

XML Instance Representation

<...>

<lat> lrms:Latitude </lat> [1]

<long> lrms:Longitude </long> [1]

<heading> Heading </heading> [0..1]

<vertical> Elevation </vertical> [0..1]

</...>

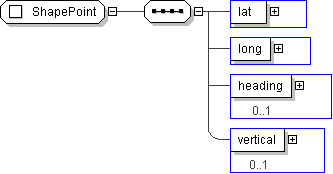

Diagram

Schema Component Representation

<xs:complexType name="ShapePoint">

<xs:sequence>

<xs:element name="lat" type=" lrms:Latitude "/>

<xs:element name="long" type=" lrms:Longitude "/>

<xs:element name="heading" type=" Heading " minOccurs="0"/>

<xs:element name="vertical" type=" Elevation " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
