Documentation for ATIS-Draft-03-00-79

Simple Type: Heading

[Table of contents]

Super-types:	xs:unsignedByte < Heading (by restriction)
Sub-types:	None

Name	Heading
Used by (from the same schema document)	Complex Type ShapePoint , Complex Type SpaceVector
Content	Base XSD Type: unsignedByte
Documentation	Vaild Encoding rules , an unsigned 8 bit value 0 = due north, larger going clockwise (east of north) (0..253) 360/254 degrees per bit 254 = no heading at all (stationary) determined by examining the velocity DE 255 = heading not known

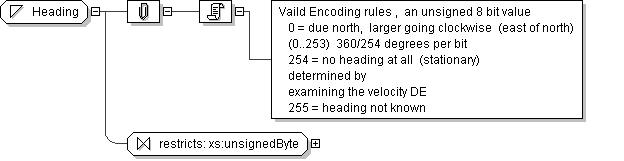

Diagram

Schema Component Representation

<xs:simpleType name="Heading">

<xs:restriction base=" xs:unsignedByte "/>

</xs:simpleType>
