Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

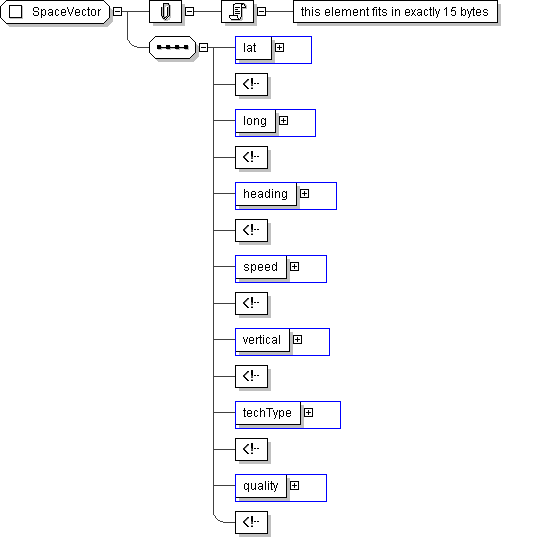

Name	SpaceVector
Used by (from the same schema document)	Complex Type RoadSideAlert
Abstract	no
Documentation	this element fits in exactly 15 bytes

XML Instance Representation

<...>

<lat> lrms:Latitude </lat> [1]

<long> lrms:Longitude </long> [1]

<heading> Heading </heading> [1]

<speed> Speed </speed> [1]

<vertical> Elevation </vertical> [1]

<techType> Location-tech </techType> [1]

<quality> Location-quality </quality> [1]

</...>

Schema Component Representation

<xs:complexType name="SpaceVector">

<xs:sequence>

<xs:element name="lat" type=" lrms:Latitude "/>

<-- a 4 byte value -->

<xs:element name="long" type=" lrms:Longitude "/>

<-- a 4 byte value -->

<xs:element name="heading" type=" Heading "/>

<-- a 1 byte value from geoids north -->

<xs:element name="speed" type=" Speed "/>

<-- a 2 byte field in units of 0.01 meters per second -->

<xs:element name="vertical" type=" Elevation "/>

<-- 3 byte field -->

<xs:element name="techType" type=" Location-tech "/>

<-- how the position was obtained, acts as a relative measure of merit from [SAE-J2313::Location-tech] -->

<xs:element name="quality" type=" Location-quality "/>

<-- estimate of accuracy for this location from [SAE-J2313::Location-quality] above two items form one 8 bit field -->

</xs:sequence>

</xs:complexType>
