Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SCHPatternIden
Used by (from the same schema document)	Complex Type CcAdherencePerformance , Complex Type CcAdherencePerformanceSub , Complex Type SchActualRunningTimes , Complex Type SchActualRunningTimesSub , Complex Type SchPatternFile , Complex Type SchPatternList , Complex Type SchPushPatterns , Complex Type SchPushRouteSchedule , Complex Type SchPushRouteSchedule , Complex Type SchRouteSchedule , Complex Type SchRouteSchedule , Complex Type SchRunningTimeList , Complex Type SchRunningTimeListSub , Complex Type SpRouteGeoTrace , Complex Type SpRouteGeoTraceSub , Complex Type CCDestinationSignRule , Complex Type CCPollResponseContents , Complex Type CCPTVTripData , Complex Type SCHPatternInfo , Complex Type SCHPTVRouteScheduleEntry , Complex Type SCHPTVRouteScheduleEntry , Complex Type SCHRunningTimeEntry , Complex Type SCHTripInfo , Complex Type SCHValidationError
Abstract	no

XML Instance Representation

<...>

<pattern-id> SCH-PatternID </pattern-id> [1]

<agency-id> CPT-AgencyID </agency-id> [0..1]

<designator> SCH-PatternDesignator </designator> [0..1]

<name> SCH-PatternName </name> [0..1]

</...>

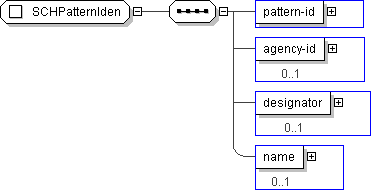

Diagram

Schema Component Representation

<xs:complexType name="SCHPatternIden">

<xs:sequence>

<xs:element name="pattern-id" type=" SCH-PatternID "/>

<xs:element name="agency-id" type=" CPT-AgencyID " minOccurs="0"/>

<xs:element name="designator" type=" SCH-PatternDesignator " minOccurs="0"/>

<xs:element name="name" type=" SCH-PatternName " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
