Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CCPTVTripData
Used by (from the same schema document)	Complex Type CcPTVTrips , Complex Type ObNotifyTripStart
Abstract	no

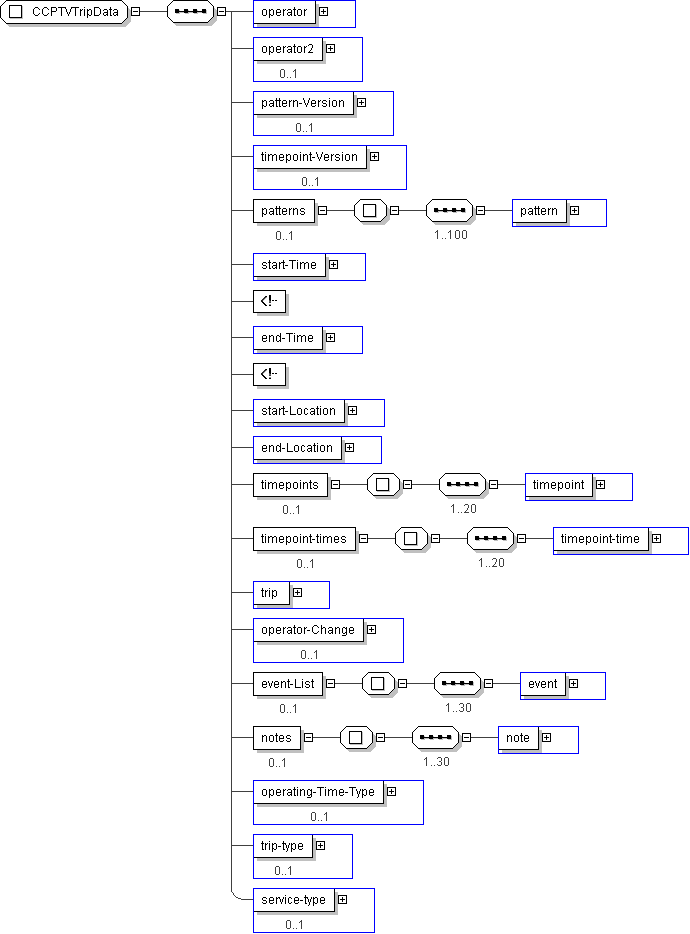

XML Instance Representation

<...>

<operator> CPTOperatorIden </operator> [1]

<operator2> CPTOperatorIden </operator2> [0..1]

<pattern-Version> SCH-TimetableVersionID </pattern-Version> [0..1]

<timepoint-Version> SCH-TimetableVersionID </timepoint-Version> [0..1]

<patterns> [0..1]
Start Sequence [1..100]

<pattern> SCHPatternIden </pattern> [1]

End Sequence
</patterns>

<start-Time> SCH-Time </start-Time> [1]

<end-Time> SCH-Time </end-Time> [1]

<start-Location> lrms:GeoLocation </start-Location> [1]

<end-Location> lrms:GeoLocation </end-Location> [1]

<timepoints> [0..1]
Start Sequence [1..20]

<timepoint> lrms:GeoLocation </timepoint> [1]

End Sequence
</timepoints>

<timepoint-times> [0..1]
Start Sequence [1..20]

<timepoint-time> SCH-Time </timepoint-time> [1]

End Sequence
</timepoint-times>

<trip> SCHTripIden </trip> [1]

<operator-Change> lrms:GeoLocation </operator-Change> [0..1]

<event-List> [0..1]
Start Sequence [1..30]

<event> SCHEvent </event> [1]

End Sequence
</event-List>

<notes> [0..1]
Start Sequence [1..30]

<note> SCHNoteInfo </note> [1]

End Sequence
</notes>

<operating-Time-Type> SCH-OperatingTimeType </operating-Time-Type> [0..1]

<trip-type> SCH-TripType </trip-type> [0..1]

<service-type> SCH-ServiceType </service-type> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CCPTVTripData">

<xs:sequence>

<xs:element name="operator" type=" CPTOperatorIden "/>

<xs:element name="operator2" type=" CPTOperatorIden " minOccurs="0"/>

<xs:element name="pattern-Version" type=" SCH-TimetableVersionID " minOccurs="0"/>

<xs:element name="timepoint-Version" type=" SCH-TimetableVersionID " minOccurs="0"/>

<xs:element name="patterns" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="pattern" type=" SCHPatternIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="start-Time" type=" SCH-Time "/>

<-- may not be a timept, but use same time format -->

<xs:element name="end-Time" type=" SCH-Time "/>

<-- may not be a timept, but use same time format -->

<xs:element name="start-Location" type=" lrms:GeoLocation "/>

<xs:element name="end-Location" type=" lrms:GeoLocation "/>

<xs:element name="timepoints" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="timepoint" type=" lrms:GeoLocation "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="timepoint-times" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="timepoint-time" type=" SCH-Time "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="trip" type=" SCHTripIden "/>

<xs:element name="operator-Change" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="event-List" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="30">

<xs:element name="event" type=" SCHEvent "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="notes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="30">

<xs:element name="note" type=" SCHNoteInfo "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="operating-Time-Type" type=" SCH-OperatingTimeType " minOccurs="0"/>

<xs:element name="trip-type" type=" SCH-TripType " minOccurs="0"/>

<xs:element name="service-type" type=" SCH-ServiceType " minOccurs="0"/>

</xs:sequence>

</xs:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:

Complex Type: CCPTVTripData
