Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CcPTVTrips
Used by (from the same schema document)	Element ccPTVTrips
Abstract	no

XML Instance Representation

<...>

<command-ID> CPT-CommandID </command-ID> [1]

<vehicle> CPTVehicleIden </vehicle> [1]

<pullout-Time> SCH-Time </pullout-Time> [0..1]

<pullin-Time> SCH-Time </pullin-Time> [0..1]

<route> SCHRouteIden </route> [1]

<route-Direction> SCH-RouteDirectionName </route-Direction> [1]

<date> CPT-Date </date> [1]

<trips> [1]
Start Sequence [1..3]

<trip> CCPTVTripData </trip> [1]

End Sequence
</trips>

<notes> [0..1]
Start Sequence [1..5]

<note> SCHNoteInfo </note> [1]

End Sequence
</notes>

</...>

Schema Component Representation

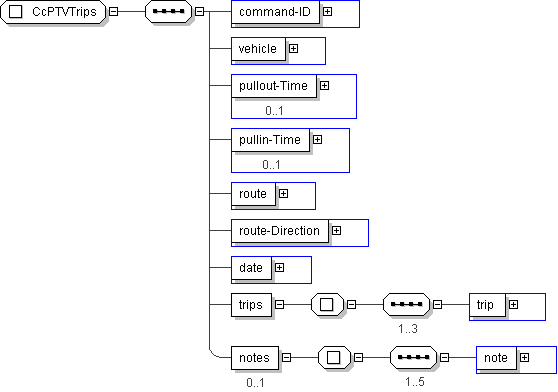

<xs:complexType name="CcPTVTrips">

<xs:sequence>

<xs:element name="command-ID" type=" CPT-CommandID "/>

<xs:element name="vehicle" type=" CPTVehicleIden "/>

<xs:element name="pullout-Time" type=" SCH-Time " minOccurs="0"/>

<xs:element name="pullin-Time" type=" SCH-Time " minOccurs="0"/>

<xs:element name="route" type=" SCHRouteIden "/>

<xs:element name="route-Direction" type=" SCH-RouteDirectionName "/>

<xs:element name="date" type=" CPT-Date "/>

<xs:element name="trips">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="3">

<xs:element name="trip" type=" CCPTVTripData "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="notes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="5">

<xs:element name="note" type=" SCHNoteInfo "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
