Documentation for ATIS-Draft-03-00-79

Element: ccPTVTrips

[Table of contents]

Name ccPTVTrips
Type CcPTVTrips
Nillable no
Abstract no
Logical Diagram
h-1556768535 h-590477498 h-588552725 h-594172994
XML Instance Representation
<ccPTVTrips>
<command-ID> CPT-CommandID </command-ID> [1]
<vehicle> CPTVehicleIden </vehicle> [1]
<pullout-Time> SCH-Time </pullout-Time> [0..1]
<pullin-Time> SCH-Time </pullin-Time> [0..1]
<route> SCHRouteIden </route> [1]
<route-Direction> SCH-RouteDirectionName </route-Direction> [1]
<date> CPT-Date </date> [1]
<trips> [1]
Start Sequence [1..3]
<trip> CCPTVTripData </trip> [1]
End Sequence
</trips>
<notes> [0..1]
Start Sequence [1..5]
<note> SCHNoteInfo </note> [1]
End Sequence
</notes>
</ccPTVTrips>

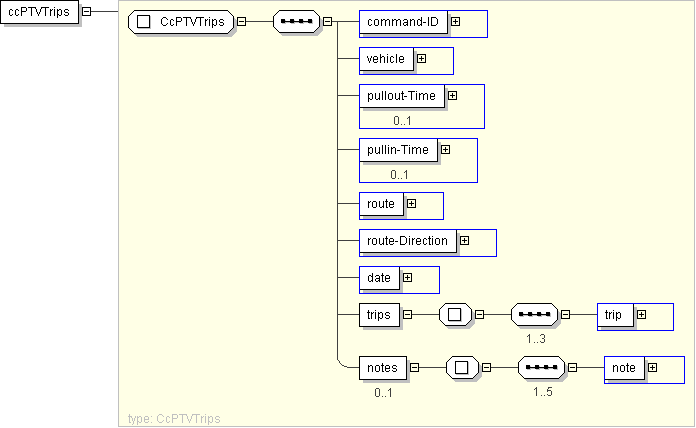

Diagram
h-453803909 h1471596526 h1149568775 h1149568775 h-963684166 h-998956645 h-1969881159 h1934366140 h-1088073133
Schema Component Representation
<xs:element name="ccPTVTrips" type=" CcPTVTrips "/>
