Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SCHEvent
Used by (from the same schema document)	Complex Type CCPTVTripData , Complex Type SCHPatternInfo , Complex Type SCHPatternSegment , Complex Type SCHTrip , Complex Type SCHTripInfo
Abstract	no

XML Instance Representation

<...>

<activation-id> [1]
Start Sequence [1..10]

<activation-id-item> SCH-ActivationID </activation-id-item> [1]

End Sequence
</activation-id>

Start Choice [1]

<time-begin> SCH-Time </time-begin> [0..1]

<point> lrms:GeoLocation </point> [0..1]

End Choice

<proximity> lrms:Distance </proximity> [0..1]

<activation-type> [1]
Start Sequence [1..10]

<activation-type-item> SCH-ActivationType </activation-type-item> [1]

End Sequence
</activation-type>

<fare-zone-id> FCFareZoneIden </fare-zone-id> [0..1]

<radio-zone-id> CPT-RadioZoneID </radio-zone-id> [0..1]

</...>

Schema Component Representation

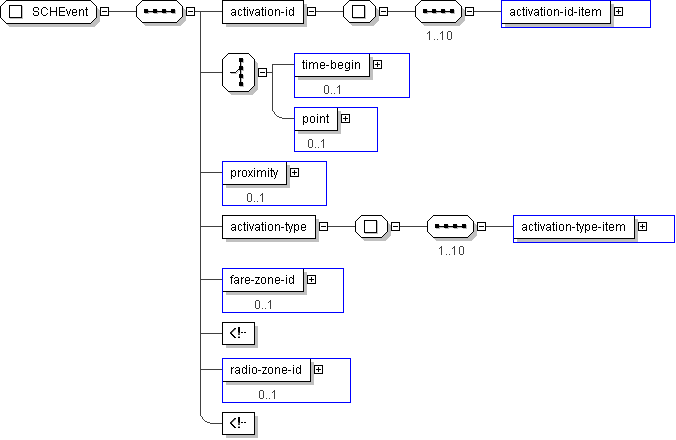

<xs:complexType name="SCHEvent">

<xs:sequence>

<xs:element name="activation-id">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="activation-id-item" type=" SCH-ActivationID "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:choice minOccurs="1">

<xs:element name="time-begin" type=" SCH-Time " minOccurs="0"/>

<xs:element name="point" type=" lrms:GeoLocation " minOccurs="0"/>

</xs:choice>

<xs:element name="proximity" type=" lrms:Distance " minOccurs="0"/>

<xs:element name="activation-type">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="activation-type-item" type=" SCH-ActivationType "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="fare-zone-id" type=" FCFareZoneIden " minOccurs="0"/>

<-- present only for activation-type fare zone -->

<xs:element name="radio-zone-id" type=" CPT-RadioZoneID " minOccurs="0"/>

<-- present only for activation-type radio-zone -->

</xs:sequence>

</xs:complexType>
