Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

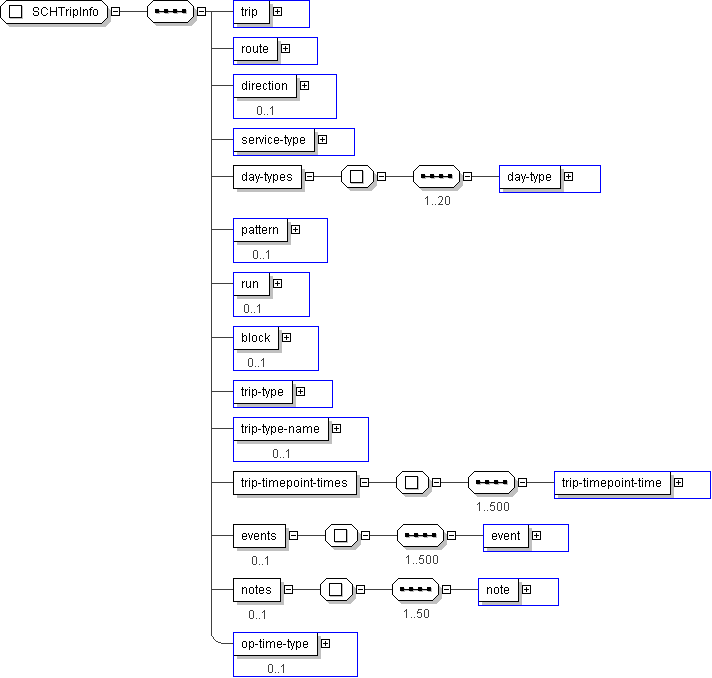

Name	SCHTripInfo
Used by (from the same schema document)	Complex Type SchPushRouteSchedule , Complex Type SchPushRouteSchedule , Complex Type SchRouteSchedule , Complex Type SchRouteSchedule , Complex Type SCHBlockScheduleEntry , Complex Type SCHPTVRouteScheduleEntry , Complex Type SCHPTVRouteScheduleEntry , Complex Type SCHRunScheduleEntry , Complex Type SCHTripDetailInfo
Abstract	no

XML Instance Representation

<...>

<trip> SCHTripIden </trip> [1]

<route> SCHRouteIden </route> [1]

<direction> SCH-RouteDirectionName </direction> [0..1]

<service-type> SCH-ServiceType </service-type> [1]

<day-types> [1]
Start Sequence [1..20]

<day-type> SCH-DayType </day-type> [1]

End Sequence
</day-types>

<pattern> SCHPatternIden </pattern> [0..1]

<run> SCHRunIden </run> [0..1]

<block> SCHBlockIden </block> [0..1]

<trip-type> SCH-TripType </trip-type> [1]

<trip-type-name> SCH-TripTypeDescription </trip-type-name> [0..1]

<trip-timepoint-times> [1]
Start Sequence [1..500]

<trip-timepoint-time> SCH-Time </trip-timepoint-time> [1]

End Sequence
</trip-timepoint-times>

<events> [0..1]
Start Sequence [1..500]

<event> SCHEvent </event> [1]

End Sequence
</events>

<notes> [0..1]
Start Sequence [1..50]

<note> SCHNoteIden </note> [1]

End Sequence
</notes>

<op-time-type> SCH-OperatingTimeType </op-time-type> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SCHTripInfo">

<xs:sequence>

<xs:element name="trip" type=" SCHTripIden "/>

<xs:element name="route" type=" SCHRouteIden "/>

<xs:element name="direction" type=" SCH-RouteDirectionName " minOccurs="0"/>

<xs:element name="service-type" type=" SCH-ServiceType "/>

<xs:element name="day-types">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="day-type" type=" SCH-DayType "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="pattern" type=" SCHPatternIden " minOccurs="0"/>

<xs:element name="run" type=" SCHRunIden " minOccurs="0"/>

<xs:element name="block" type=" SCHBlockIden " minOccurs="0"/>

<xs:element name="trip-type" type=" SCH-TripType "/>

<xs:element name="trip-type-name" type=" SCH-TripTypeDescription " minOccurs="0"/>

<xs:element name="trip-timepoint-times">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="500">

<xs:element name="trip-timepoint-time" type=" SCH-Time "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="events" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="500">

<xs:element name="event" type=" SCHEvent "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="notes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="50">

<xs:element name="note" type=" SCHNoteIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="op-time-type" type=" SCH-OperatingTimeType " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
