Documentation for ATIS-Draft-03-00-79

Complex Type: SCHPTVRouteScheduleEntry

[Table of contents]

Super-types: None
Sub-types: None
Name SCHPTVRouteScheduleEntry
Used by (from the same schema document) Complex Type SchRouteScheduleFile
Abstract no
XML Instance Representation
<...>
<route> SCHRouteIden </route> [1]
<metadata> CPTRowMetaData </metadata> [0..1]
<version> SCH-TimetableVersionID </version> [0..1]
<route-ID-short> CC-RouteIDShort </route-ID-short> [0..1]
<route-notes> [0..1]
Start Sequence [1..100]
<route-note> SCHNoteIden </route-note> [1]
End Sequence
</route-notes>
<direction-A> SCH-RouteDirectionName </direction-A> [0..1]
<direction-B> SCH-RouteDirectionName </direction-B> [0..1]
<defaultAPattern> SCHPatternIden </defaultAPattern> [1]
<defaultBPattern> SCHPatternIden </defaultBPattern> [0..1]
<scheduledATrips> [1]
Start Sequence [1..10000]
<scheduledATrip> SCHTripInfo </scheduledATrip> [1]
End Sequence
</scheduledATrips>
<scheduledBTrips> [0..1]
Start Sequence [1..10000]
<scheduledBTrip> SCHTripInfo </scheduledBTrip> [1]
End Sequence
</scheduledBTrips>
<notes> [0..1]
Start Sequence [1..2000]
<note> SCHNoteInfo </note> [1]
End Sequence
</notes>
<deletedATrips> [0..1]
Start Sequence [1..10000]
<deletedATrip> SCHTripIden </deletedATrip> [1]
End Sequence
</deletedATrips>
<deletedBTrips> [0..1]
Start Sequence [1..10000]
<deletedBTrip> SCHTripIden </deletedBTrip> [1]
End Sequence
</deletedBTrips>
</...>

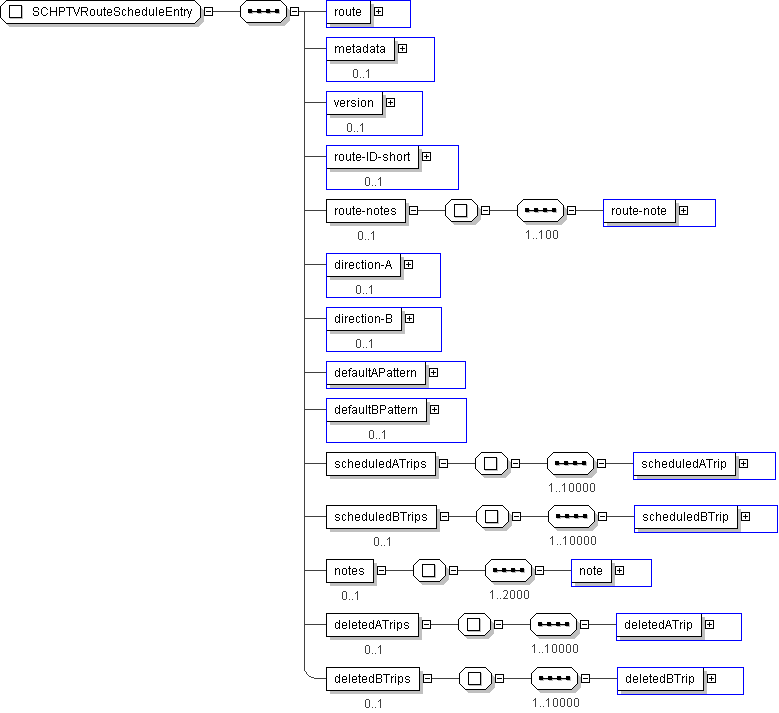

Diagram
h-963684166 h1503432423 h-337950068 h-1505486048 h-1088082775 h-998956645 h-998956645 h-1937713343 h-1937713343 h-1158363898 h-1158363898 h-1088073133 h-1158373540 h-1158373540
Schema Component Representation
<xs:complexType name="SCHPTVRouteScheduleEntry">
<xs:sequence>
<xs:element name="route" type=" SCHRouteIden "/>
<xs:element name="metadata" type=" CPTRowMetaData " minOccurs="0"/>
<xs:element name="version" type=" SCH-TimetableVersionID " minOccurs="0"/>
<xs:element name="route-ID-short" type=" CC-RouteIDShort " minOccurs="0"/>
<xs:element name="route-notes" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="route-note" type=" SCHNoteIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="direction-A" type=" SCH-RouteDirectionName " minOccurs="0"/>
<xs:element name="direction-B" type=" SCH-RouteDirectionName " minOccurs="0"/>
<xs:element name="defaultAPattern" type=" SCHPatternIden "/>
<xs:element name="defaultBPattern" type=" SCHPatternIden " minOccurs="0"/>
<xs:element name="scheduledATrips">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="scheduledATrip" type=" SCHTripInfo "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="scheduledBTrips" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="scheduledBTrip" type=" SCHTripInfo "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="notes" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="2000">
<xs:element name="note" type=" SCHNoteInfo "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="deletedATrips" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="deletedATrip" type=" SCHTripIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="deletedBTrips" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="deletedBTrip" type=" SCHTripIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
