Documentation for ATIS-Draft-03-00-79

Complex Type: SchRouteScheduleFile

[Table of contents]

Super-types: None
Sub-types: None
Name SchRouteScheduleFile
Used by (from the same schema document) Element schRouteScheduleFile
Abstract no
XML Instance Representation
<...>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<route-schedules> [0..1]
Start Sequence [1..500]
<route-schedule> SCHPTVRouteScheduleEntry </route-schedule> [1]
End Sequence
</route-schedules>
<routes-to-delete> [0..1]
Start Sequence [1..500]
<routes-to-delete-item> SCHRouteIden </routes-to-delete-item> [1]
End Sequence
</routes-to-delete>
<transfers> [0..1]
Start Sequence [1..10000]
<transfer> SCHTransferInfo </transfer> [1]
End Sequence
</transfers>
<deleted-tranfers> [0..1]
Start Sequence [1..10000]
<deleted-tranfer> SCH-TransferID </deleted-tranfer> [1]
End Sequence
</deleted-tranfers>
</...>

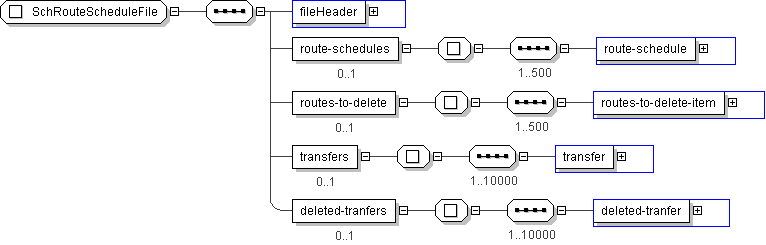

Diagram
h-956766127 h-762900687 h-963684166 h-1864223668 h-928279808
Schema Component Representation
<xs:complexType name="SchRouteScheduleFile">
<xs:sequence>
<xs:element name="fileHeader" type=" CPTLoadFileHeader "/>
<xs:element name="route-schedules" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="500">
<xs:element name="route-schedule" type=" SCHPTVRouteScheduleEntry "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="routes-to-delete" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="500">
<xs:element name="routes-to-delete-item" type=" SCHRouteIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="transfers" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="transfer" type=" SCHTransferInfo "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="deleted-tranfers" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="deleted-tranfer" type=" SCH-TransferID "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
