Documentation for ATIS-Draft-03-00-79

Element: schRouteScheduleFile

[Table of contents]

Name schRouteScheduleFile
Type SchRouteScheduleFile
Nillable no
Abstract no

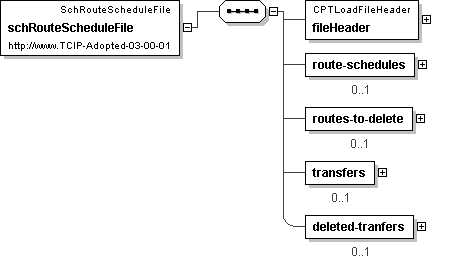

Logical Diagram
h-2078410676 h-1844524299 h-1229737635 h1630852197 h-466434302
XML Instance Representation
<schRouteScheduleFile>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<route-schedules> [0..1]
Start Sequence [1..500]
<route-schedule> SCHPTVRouteScheduleEntry </route-schedule> [1]
End Sequence
</route-schedules>
<routes-to-delete> [0..1]
Start Sequence [1..500]
<routes-to-delete-item> SCHRouteIden </routes-to-delete-item> [1]
End Sequence
</routes-to-delete>
<transfers> [0..1]
Start Sequence [1..10000]
<transfer> SCHTransferInfo </transfer> [1]
End Sequence
</transfers>
<deleted-tranfers> [0..1]
Start Sequence [1..10000]
<deleted-tranfer> SCH-TransferID </deleted-tranfer> [1]
End Sequence
</deleted-tranfers>
</schRouteScheduleFile>

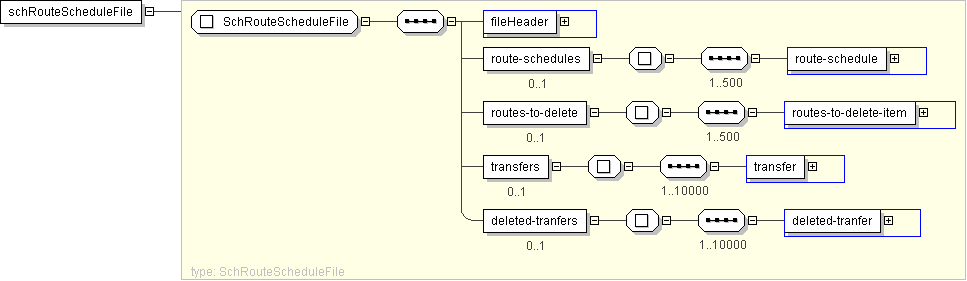

Diagram
h-956766127 h-762900687 h-963684166 h-1864223668 h-928279808
Schema Component Representation
<xs:element name="schRouteScheduleFile" type=" SchRouteScheduleFile "/>
