Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CPTLoadFileHeader
Used by (from the same schema document)	Complex Type CcAnnouncementInfo , Complex Type CcCannedMessageText , Complex Type CcGISFile , Complex Type CcOnboardConfigurationData , Complex Type CcOnboardSoftware , Complex Type CcPTVAlarmLimits , Complex Type CptBadLoadRequest , Complex Type CptCurrentVersionNotice , Complex Type CptCurrentVersionNotice , Complex Type CptLoadControl , Complex Type CptLoadControl , Complex Type CptLoadControl , Complex Type CptOnboardVersionNotice , Complex Type CptStoppointsFile , Complex Type FcFareLoadData , Complex Type SchBlockScheduleFile , Complex Type SchCalendarFile , Complex Type SchOperatorAssignmentFile , Complex Type SchPatternFile , Complex Type SchRouteScheduleFile , Complex Type SchRunScheduleFile , Complex Type SchTimepointsFile , Complex Type SchVehicleAssignmentFile , Complex Type TspBusinessRules
Abstract	no

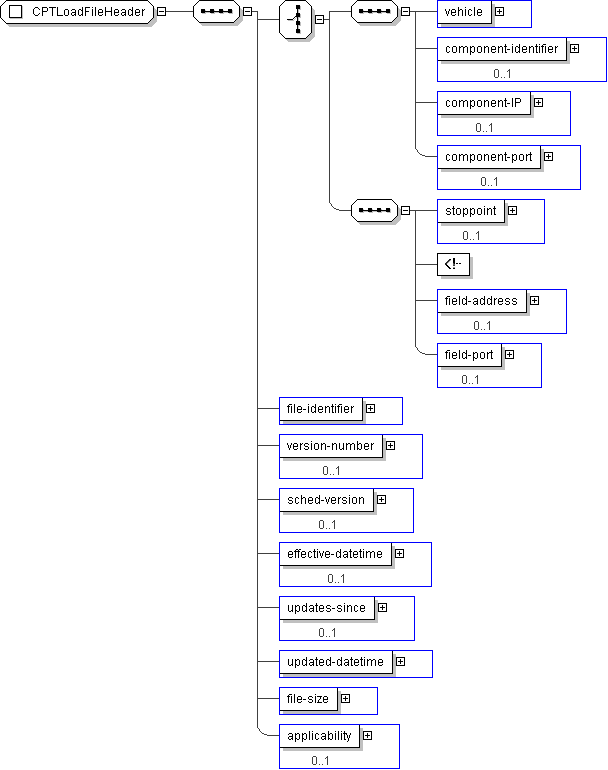

XML Instance Representation

<...>
Start Choice [1]

<vehicle> CPTVehicleIden </vehicle> [1]

<component-identifier> OB-MID </component-identifier> [0..1]

<component-IP> CPT-IP-Address </component-IP> [0..1]

<component-port> CPT-UDP-TCP-PortNumber </component-port> [0..1]

<stoppoint> CPTStoppointIden </stoppoint> [0..1]

<field-address> CPT-IP-Address </field-address> [0..1]

<field-port> CPT-UDP-TCP-PortNumber </field-port> [0..1]

End Choice

<file-identifier> CPT-FileIdentifier </file-identifier> [1]

<version-number> CPT-FileVersion </version-number> [0..1]

<sched-version> SCH-TimetableVersionID </sched-version> [0..1]

<effective-datetime> CPT-DateTime </effective-datetime> [0..1]

<updates-since> CPT-DateTime </updates-since> [0..1]

<updated-datetime> CPT-DateTime </updated-datetime> [1]

<file-size> CPT-FileSize </file-size> [1]

<applicability> CPTFileApplicability </applicability> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CPTLoadFileHeader">

<xs:sequence>

<xs:choice>

<xs:sequence>

<xs:element name="vehicle" type=" CPTVehicleIden "/>

<xs:element name="component-identifier" type=" OB-MID " minOccurs="0"/>

<xs:element name="component-IP" type=" CPT-IP-Address " minOccurs="0"/>

<xs:element name="component-port" type=" CPT-UDP-TCP-PortNumber " minOccurs="0"/>

</xs:sequence>

<xs:sequence>

<xs:element name="stoppoint" type=" CPTStoppointIden " minOccurs="0"/>

<-- required if a stoppoint -->

<xs:element name="field-address" type=" CPT-IP-Address " minOccurs="0"/>

<xs:element name="field-port" type=" CPT-UDP-TCP-PortNumber " minOccurs="0"/>

</xs:sequence>

</xs:choice>

<xs:element name="file-identifier" type=" CPT-FileIdentifier "/>

<xs:element name="version-number" type=" CPT-FileVersion " minOccurs="0"/>

<xs:element name="sched-version" type=" SCH-TimetableVersionID " minOccurs="0"/>

<xs:element name="effective-datetime" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="updates-since" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="updated-datetime" type=" CPT-DateTime "/>

<xs:element name="file-size" type=" CPT-FileSize "/>

<xs:element name="applicability" type=" CPTFileApplicability " minOccurs="0"/>

</xs:sequence>

</xs:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:

Complex Type: CPTLoadFileHeader
