Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CcGISFile
Used by (from the same schema document)	Element ccGISFile
Abstract	no

XML Instance Representation

<...>

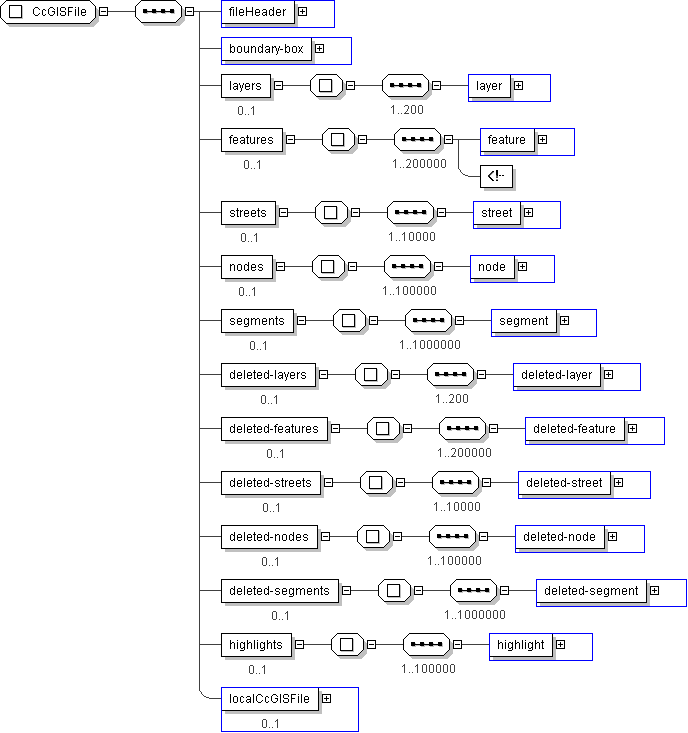

<fileHeader> CPTLoadFileHeader </fileHeader> [1]

<boundary-box> SPPolygon </boundary-box> [1]

<layers> [0..1]
Start Sequence [1..200]

<layer> SPGISLayer </layer> [1]

End Sequence
</layers>

<features> [0..1]
Start Sequence [1..200000]

<feature> SPFeature </feature> [1]

End Sequence
</features>

<streets> [0..1]
Start Sequence [1..10000]

<street> lrms:StreetInfo </street> [1]

End Sequence
</streets>

<nodes> [0..1]
Start Sequence [1..100000]

<node> lrms:NodeAttribute </node> [1]

End Sequence
</nodes>

<segments> [0..1]
Start Sequence [1..1000000]

<segment> SPStreetSeg </segment> [1]

End Sequence
</segments>

<deleted-layers> [0..1]
Start Sequence [1..200]

<deleted-layer> CPT-FeatureType </deleted-layer> [1]

End Sequence
</deleted-layers>

<deleted-features> [0..1]
Start Sequence [1..200000]

<deleted-feature> SPFeature </deleted-feature> [1]

End Sequence
</deleted-features>

<deleted-streets> [0..1]
Start Sequence [1..10000]

<deleted-street> lrms:StreetInfo </deleted-street> [1]

End Sequence
</deleted-streets>

<deleted-nodes> [0..1]
Start Sequence [1..100000]

<deleted-node> lrms:NodeAttribute </deleted-node> [1]

End Sequence
</deleted-nodes>

<deleted-segments> [0..1]
Start Sequence [1..1000000]

<deleted-segment> SPStreetSeg </deleted-segment> [1]

End Sequence
</deleted-segments>

<highlights> [0..1]
Start Sequence [1..100000]

<highlight> CPTGenericIden </highlight> [1]

End Sequence
</highlights>

<localCcGISFile> local:CcGISFile </localCcGISFile> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CcGISFile">

<xs:sequence>

<xs:element name="fileHeader" type=" CPTLoadFileHeader "/>

<xs:element name="boundary-box" type=" SPPolygon "/>

<xs:element name="layers" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="200">

<xs:element name="layer" type=" SPGISLayer "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="features" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="200000">

<xs:element name="feature" type=" SPFeature "/>

<-- data to convey an OPTIONAL associated street network agencies may elect to omit some or all streets or street segments from the map -->

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="streets" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10000">

<xs:element name="street" type=" lrms:StreetInfo "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="nodes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100000">

<xs:element name="node" type=" lrms:NodeAttribute "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="segments" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000000">

<xs:element name="segment" type=" SPStreetSeg "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="deleted-layers" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="200">

<xs:element name="deleted-layer" type=" CPT-FeatureType "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="deleted-features" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="200000">

<xs:element name="deleted-feature" type=" SPFeature "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="deleted-streets" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10000">

<xs:element name="deleted-street" type=" lrms:StreetInfo "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="deleted-nodes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100000">

<xs:element name="deleted-node" type=" lrms:NodeAttribute "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="deleted-segments" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000000">

<xs:element name="deleted-segment" type=" SPStreetSeg "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="highlights" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100000">

<xs:element name="highlight" type=" CPTGenericIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localCcGISFile" type=" local:CcGISFile " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
