Documentation for ATIS-Draft-03-00-79

Element: ccGISFile

[Table of contents]

Name ccGISFile
Type CcGISFile
Nillable no
Abstract no

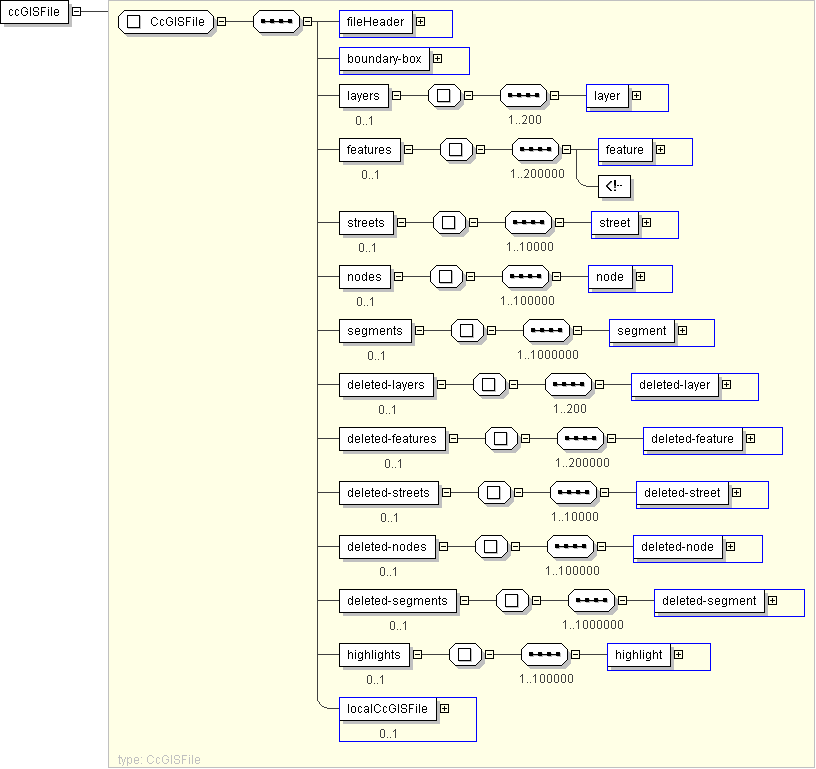

Logical Diagram
h-2078410676 h-953402869 h-1309532187 h974918176 h514243213 h-594188370 h-1973521021 h1020291353 h-2037588396 h-275671079 h1559177210 h-691060297 h1101482850
XML Instance Representation
<ccGISFile>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<boundary-box> SPPolygon </boundary-box> [1]
<layers> [0..1]
Start Sequence [1..200]
<layer> SPGISLayer </layer> [1]
End Sequence
</layers>
<features> [0..1]
Start Sequence [1..200000]
<feature> SPFeature </feature> [1]
End Sequence
</features>
<streets> [0..1]
Start Sequence [1..10000]
<street> lrms:StreetInfo </street> [1]
End Sequence
</streets>
<nodes> [0..1]
Start Sequence [1..100000]
<node> lrms:NodeAttribute </node> [1]
End Sequence
</nodes>
<segments> [0..1]
Start Sequence [1..1000000]
<segment> SPStreetSeg </segment> [1]
End Sequence
</segments>
<deleted-layers> [0..1]
Start Sequence [1..200]
<deleted-layer> CPT-FeatureType </deleted-layer> [1]
End Sequence
</deleted-layers>
<deleted-features> [0..1]
Start Sequence [1..200000]
<deleted-feature> SPFeature </deleted-feature> [1]
End Sequence
</deleted-features>
<deleted-streets> [0..1]
Start Sequence [1..10000]
<deleted-street> lrms:StreetInfo </deleted-street> [1]
End Sequence
</deleted-streets>
<deleted-nodes> [0..1]
Start Sequence [1..100000]
<deleted-node> lrms:NodeAttribute </deleted-node> [1]
End Sequence
</deleted-nodes>
<deleted-segments> [0..1]
Start Sequence [1..1000000]
<deleted-segment> SPStreetSeg </deleted-segment> [1]
End Sequence
</deleted-segments>
<highlights> [0..1]
Start Sequence [1..100000]
<highlight> CPTGenericIden </highlight> [1]
End Sequence
</highlights>
<localCcGISFile> local:CcGISFile </localCcGISFile> [0..1]
</ccGISFile>

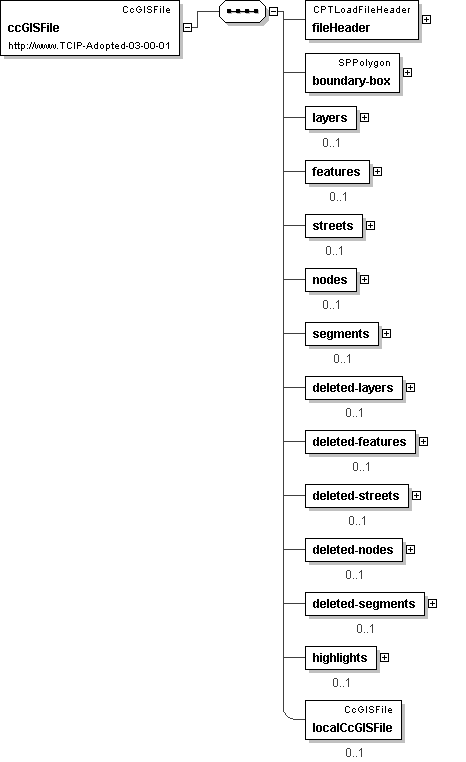

Diagram
h-956766127 h-1414121128 h483636130 h-1995809004 h1398024598 h730866261 h1986700784 h-1229197083 h-1995809004 h1398024598 h730866261 h1986700784 h-1935084263 h-21107320
Schema Component Representation
<xs:element name="ccGISFile" type=" CcGISFile "/>
