Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

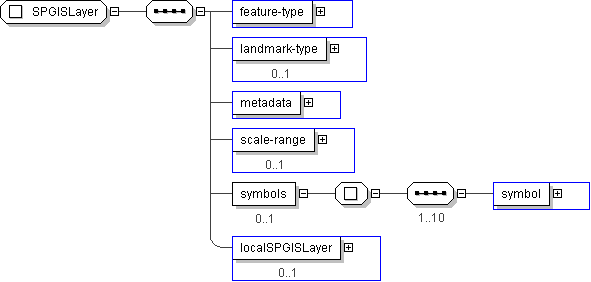

Name	SPGISLayer
Used by (from the same schema document)	Complex Type CcGISFile , Complex Type SpGIS , Complex Type SpGISPush
Abstract	no

XML Instance Representation

<...>

<feature-type> CPT-FeatureType </feature-type> [1]

<landmark-type> PI-LandmarkType </landmark-type> [0..1]

<metadata> CPTRowMetaData </metadata> [1]

<scale-range> SPScaleRange </scale-range> [0..1]

<symbols> [0..1]
Start Sequence [1..10]

<symbol> SPFeatureSymbol </symbol> [1]

End Sequence
</symbols>

<localSPGISLayer> local:SPGISLayer </localSPGISLayer> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SPGISLayer">

<xs:sequence>

<xs:element name="feature-type" type=" CPT-FeatureType "/>

<xs:element name="landmark-type" type=" PI-LandmarkType " minOccurs="0"/>

<xs:element name="metadata" type=" CPTRowMetaData "/>

<xs:element name="scale-range" type=" SPScaleRange " minOccurs="0"/>

<xs:element name="symbols" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="symbol" type=" SPFeatureSymbol "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localSPGISLayer" type=" local:SPGISLayer " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
