Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

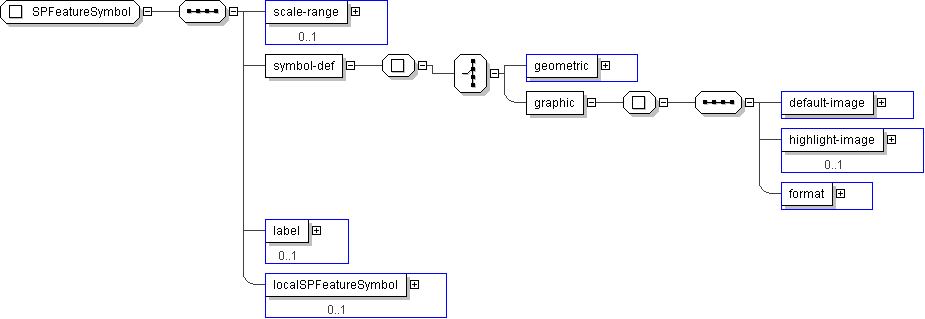

Name	SPFeatureSymbol
Used by (from the same schema document)	Complex Type SPGISLayer
Abstract	no

XML Instance Representation

<...>

<scale-range> SPScaleRange </scale-range> [0..1]

<symbol-def> [1]
Start Choice [1]

<geometric> SPGeometricSymbol </geometric> [1]

<graphic> [1]

<default-image> PI-BinaryImageData </default-image> [1]

<highlight-image> PI-BinaryImageData </highlight-image> [0..1]

<format> PI-GraphicFormat </format> [1]

</graphic>

End Choice
</symbol-def>

<label> SP-SymbolLabel </label> [0..1]

<localSPFeatureSymbol> local:SPFeatureSymbol </localSPFeatureSymbol> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SPFeatureSymbol">

<xs:sequence>

<xs:element name="scale-range" type=" SPScaleRange " minOccurs="0"/>

<xs:element name="symbol-def">

<xs:complexType>

<xs:choice>

<xs:element name="geometric" type=" SPGeometricSymbol "/>

<xs:element name="graphic">

<xs:complexType>

<xs:sequence>

<xs:element name="default-image" type=" PI-BinaryImageData "/>

<xs:element name="highlight-image" type=" PI-BinaryImageData " minOccurs="0"/>

<xs:element name="format" type=" PI-GraphicFormat "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:choice>

</xs:complexType>

</xs:element>

<xs:element name="label" type=" SP-SymbolLabel " minOccurs="0"/>

<xs:element name="localSPFeatureSymbol" type=" local:SPFeatureSymbol " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
