Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SPGeometricSymbol
Used by (from the same schema document)	Complex Type SPFeatureSymbol
Abstract	no

XML Instance Representation

<...>

<parts> [1]
Start Sequence [1..20]

<part> SPSymbolPart </part> [1]

End Sequence
</parts>

<default-color> CPT-Color </default-color> [0..1]

<highlight-color> CPT-Color </highlight-color> [0..1]

</...>

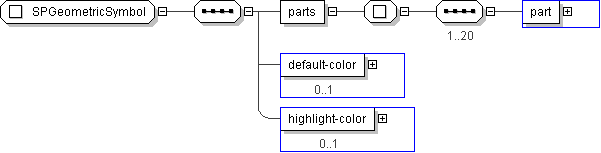

Diagram

Schema Component Representation

<xs:complexType name="SPGeometricSymbol">

<xs:sequence>

<xs:element name="parts">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="part" type=" SPSymbolPart "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="default-color" type=" CPT-Color " minOccurs="0"/>

<xs:element name="highlight-color" type=" CPT-Color " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
