Documentation for ATIS-Draft-03-00-79

Simple Type: CPT-FeatureType

[Table of contents]

Super-types: None
Sub-types: None
Name CPT-FeatureType
Used by (from the same schema document) Complex Type CcGISFile , Complex Type PiItineraryMap , Complex Type PiItineraryMap , Complex Type PiItineraryMapSub , Complex Type PiItineraryMapSub , Complex Type SpGIS , Complex Type SpGIS , Complex Type SpGISSub , Complex Type SpMapImage , Complex Type SpMapImage , Complex Type SpMapImageSub , Complex Type SpMapImageSub , Complex Type CPTGenericIden , Complex Type SPFeature , Complex Type SPGISLayer
Content
  • Union of following types:
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 1 <= value <= 46
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'street'|'highway'|'intersection'|'ramp'|'transit sign'|'non transit sign'|'ptv garage'|'stoppoint'|'timepoint'|'shelter'|'tracks'|'parking garage'|'park and ride'|'pattern'|'pattern segment'|'route'|'incident'|'landmark'|'origin'|'destination'|'fare zone'|'water'|'parking lot'|'transit facility'|'fire hydrant'|'city'|'county'|'state'|'town'|'employee'|'operator base'|'operator'|'org unit'|'transfer cluster'|'vehicle'|'fare policy'|'fare zone'|'amenity'|'announcement'|'service bulletin'|'geo zone'|'traveler'|'block'|'note'|'run'|'trip'}
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 128 <= value <= 255
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'insert-local-values-here'}
Application Data street (1) highway (2) intersection (3) ramp (4) transit sign (5) non transit sign (6) ptv garage (7) stoppoint (8) timepoint (9) shelter (10) tracks (11) -- rail e.g. commuter rail , parking garage (12) park and ride (13) pattern (14) pattern segment (15) route (16) incident (17) landmark (18) origin (19) destination (20) fare zone (21) water (22) -- rivers , parking lot (23) transit facility (24) -- of any kind fire hydrant (25) city (26) county (27) -- or borough state (28) town (29) employee (30) operator base (31) operator (32) org unit (33) transfer cluster (34) vehicle (35) fare policy (36) fare zone (37) amenity (38) announcement (39) service bulletin (40) geo zone (41) traveler (42) block (43) -- vehicle assignment note (44) -- scheduling note run (45) trip (46) -- scheduled trip -- 47-127 reserved -- 128-255 local use

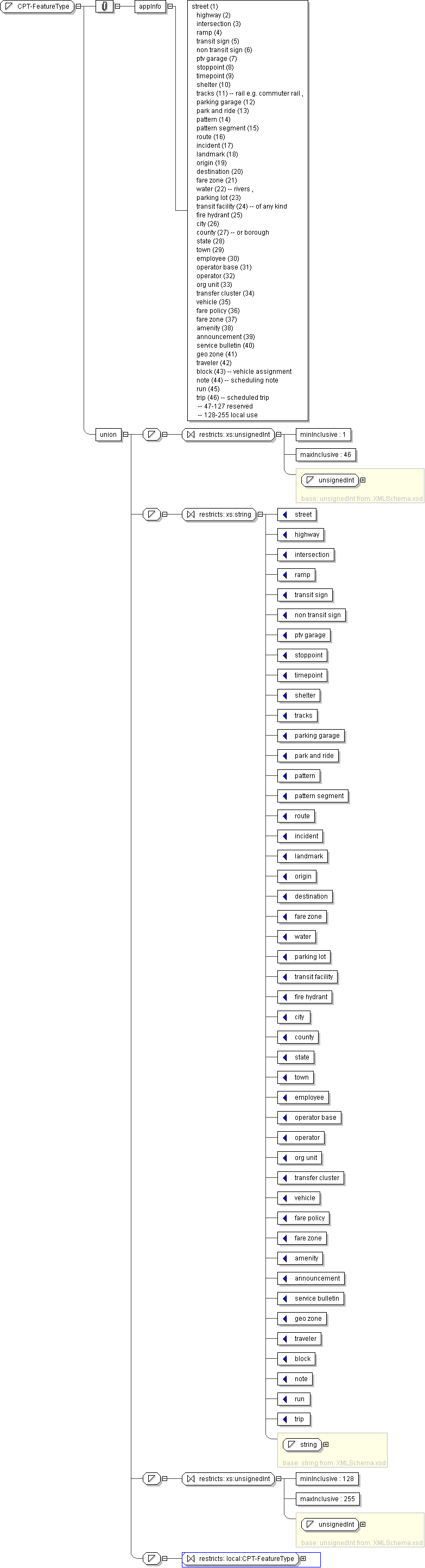

Diagram
h-1229197083
Schema Component Representation
<xs:simpleType name="CPT-FeatureType">
<xs:union>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="1"/>
<xs:maxInclusive value="46"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:enumeration value="street"/>
<xs:enumeration value="highway"/>
<xs:enumeration value="intersection"/>
<xs:enumeration value="ramp"/>
<xs:enumeration value="transit sign"/>
<xs:enumeration value="non transit sign"/>
<xs:enumeration value="ptv garage"/>
<xs:enumeration value="stoppoint"/>
<xs:enumeration value="timepoint"/>
<xs:enumeration value="shelter"/>
<xs:enumeration value="tracks"/>
<xs:enumeration value="parking garage"/>
<xs:enumeration value="park and ride"/>
<xs:enumeration value="pattern"/>
<xs:enumeration value="pattern segment"/>
<xs:enumeration value="route"/>
<xs:enumeration value="incident"/>
<xs:enumeration value="landmark"/>
<xs:enumeration value="origin"/>
<xs:enumeration value="destination"/>
<xs:enumeration value="fare zone"/>
<xs:enumeration value="water"/>
<xs:enumeration value="parking lot"/>
<xs:enumeration value="transit facility"/>
<xs:enumeration value="fire hydrant"/>
<xs:enumeration value="city"/>
<xs:enumeration value="county"/>
<xs:enumeration value="state"/>
<xs:enumeration value="town"/>
<xs:enumeration value="employee"/>
<xs:enumeration value="operator base"/>
<xs:enumeration value="operator"/>
<xs:enumeration value="org unit"/>
<xs:enumeration value="transfer cluster"/>
<xs:enumeration value="vehicle"/>
<xs:enumeration value="fare policy"/>
<xs:enumeration value="fare zone"/>
<xs:enumeration value="amenity"/>
<xs:enumeration value="announcement"/>
<xs:enumeration value="service bulletin"/>
<xs:enumeration value="geo zone"/>
<xs:enumeration value="traveler"/>
<xs:enumeration value="block"/>
<xs:enumeration value="note"/>
<xs:enumeration value="run"/>
<xs:enumeration value="trip"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="128"/>
<xs:maxInclusive value="255"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" local:CPT-FeatureType "/>
</xs:simpleType>
</xs:union>
</xs:simpleType>
