Name	SpMapImageSub
Used by (from the same schema document)	Element spMapImageSub
Abstract	no

XML Instance Representation

<...>

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

Start Choice [1]

<box> SPBoundaryBox </box> [1]

<range> SPBoundaryRange </range> [1]

<content> SPBoundaryContent </content> [1]

End Choice

<map-contents> [1]
Start Sequence [1..200]

<map-content> CPT-FeatureType </map-content> [1]

End Sequence
</map-contents>

<highlight-items> [0..1]
Start Sequence [1..50]

<highlight-item> CPTGenericIden </highlight-item> [1]

End Sequence
</highlight-items>

<highlight-classes> [0..1]
Start Sequence [1..50]

<highlight-classe> CPT-FeatureType </highlight-classe> [1]

End Sequence
</highlight-classes>

</...>

Schema Component Representation

<xs:complexType name="SpMapImageSub">

<xs:sequence>

<xs:element name="subscriptionInfo" type=" CPTSubscriptionHeader "/>

<xs:choice>

<xs:element name="box" type=" SPBoundaryBox "/>

<xs:element name="range" type=" SPBoundaryRange "/>

<xs:element name="content" type=" SPBoundaryContent "/>

</xs:choice>

<xs:element name="map-contents">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="200">

<xs:element name="map-content" type=" CPT-FeatureType "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="highlight-items" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="50">

<xs:element name="highlight-item" type=" CPTGenericIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="highlight-classes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="50">

<xs:element name="highlight-classe" type=" CPT-FeatureType "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:

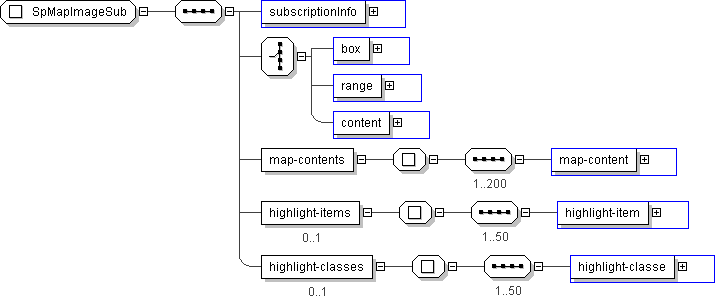

Complex Type: SpMapImageSub
