Documentation for ATIS-Draft-03-00-79

Element: spMapImageSub

[Table of contents]

Name spMapImageSub
Type SpMapImageSub
Nillable no
Abstract no

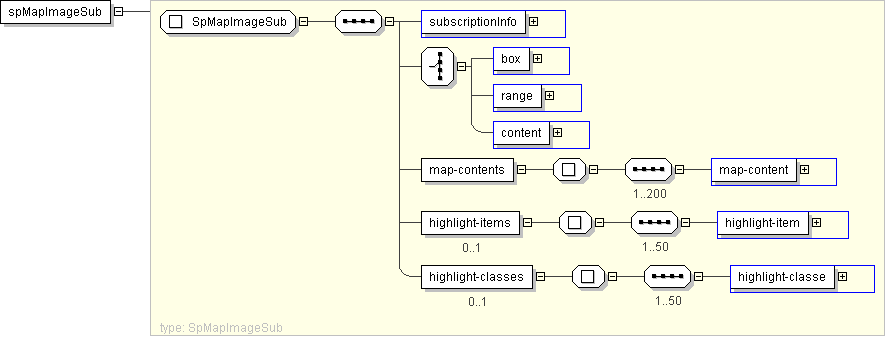

Logical Diagram
h-841091506 h674229768 h-590901702 h-947306954 h36897998 h-537579996 h1814066570
XML Instance Representation
<spMapImageSub>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
Start Choice [1]
<box> SPBoundaryBox </box> [1]
<range> SPBoundaryRange </range> [1]
<content> SPBoundaryContent </content> [1]
End Choice
<map-contents> [1]
Start Sequence [1..200]
<map-content> CPT-FeatureType </map-content> [1]
End Sequence
</map-contents>
<highlight-items> [0..1]
Start Sequence [1..50]
<highlight-item> CPTGenericIden </highlight-item> [1]
End Sequence
</highlight-items>
<highlight-classes> [0..1]
Start Sequence [1..50]
<highlight-classe> CPT-FeatureType </highlight-classe> [1]
End Sequence
</highlight-classes>
</spMapImageSub>

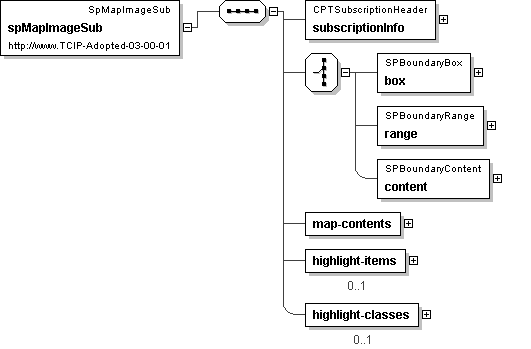

Diagram
h-527207252 h-304293281 h-353713967 h-643160307 h-1229197083 h-1935084263 h-1229197083
Schema Component Representation
<xs:element name="spMapImageSub" type=" SpMapImageSub "/>
