Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

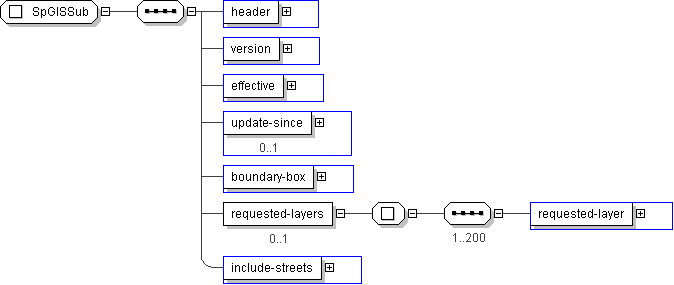

Name	SpGISSub
Used by (from the same schema document)	Element spGISSub
Abstract	no

XML Instance Representation

<...>

<header> CPTSubscriptionHeader </header> [1]

<version> CPT-FileVersion </version> [1]

<effective> CPT-DateTime </effective> [1]

<update-since> CPT-DateTime </update-since> [0..1]

<boundary-box> SPPolygon </boundary-box> [1]

<requested-layers> [0..1]
Start Sequence [1..200]

<requested-layer> CPT-FeatureType </requested-layer> [1]

End Sequence
</requested-layers>

<include-streets> CPT-Boolean </include-streets> [1]

</...>

Schema Component Representation

<xs:complexType name="SpGISSub">

<xs:sequence>

<xs:element name="header" type=" CPTSubscriptionHeader "/>

<xs:element name="version" type=" CPT-FileVersion "/>

<xs:element name="effective" type=" CPT-DateTime "/>

<xs:element name="update-since" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="boundary-box" type=" SPPolygon "/>

<xs:element name="requested-layers" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="200">

<xs:element name="requested-layer" type=" CPT-FeatureType "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="include-streets" type=" CPT-Boolean "/>

</xs:sequence>

</xs:complexType>
