Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SPPolygon
Used by (from the same schema document)	Complex Type CcGISFile , Complex Type PiAgencyList , Complex Type PiAgencyListSub , Complex Type PiGeoZoneList , Complex Type PiGeoZoneListSub , Complex Type PiServiceList , Complex Type PiServiceListSub , Complex Type SpGIS , Complex Type SpGISPush , Complex Type SpGISSub , Complex Type CPTRadioZone , Complex Type FCFareZoneDefinition , Complex Type IMIncident , Complex Type PIAgencyProfile , Complex Type PIGeoZone , Complex Type SPFacilityGeoLoc , Complex Type SPFeatureGeometry , Complex Type SPIncidentLocation , Complex Type SPInteriorLocation , Complex Type SPStopGeoLoc , Complex Type TSPBoundaryEntry
Abstract	no

XML Instance Representation

<...>

<polygonName> lrms:Text-name255 </polygonName> [0..1]

<vertices> [1]
Start Sequence [3..255]

<vertice> atis:ShapePoint </vertice> [1]

End Sequence
</vertices>

<polygonId> lrms:String-index64 </polygonId> [0..1]

</...>

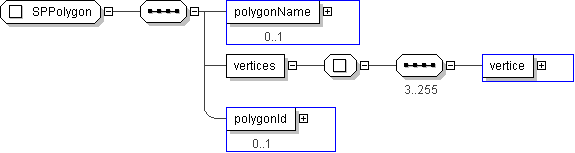

Diagram

Schema Component Representation

<xs:complexType name="SPPolygon">

<xs:sequence>

<xs:element name="polygonName" type=" lrms:Text-name255 " minOccurs="0"/>

<xs:element name="vertices">

<xs:complexType>

<xs:sequence minOccurs="3" maxOccurs="255">

<xs:element name="vertice" type=" atis:ShapePoint "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="polygonId" type=" lrms:String-index64 " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
