Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

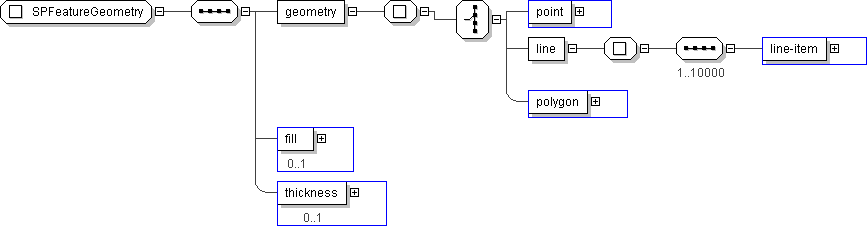

Name	SPFeatureGeometry
Used by (from the same schema document)	Complex Type SPFeature
Abstract	no

XML Instance Representation

<...>

<geometry> [1]
Start Choice [1]

<point> SPPoint </point> [1]

<line> [1]
Start Sequence [1..10000]

<line-item> SPPoint </line-item> [1]

End Sequence
</line>

<polygon> SPPolygon </polygon> [1]

End Choice
</geometry>

<fill> CPT-Boolean </fill> [0..1]

<thickness> CPT-GenericCounter </thickness> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SPFeatureGeometry">

<xs:sequence>

<xs:element name="geometry">

<xs:complexType>

<xs:choice>

<xs:element name="point" type=" SPPoint "/>

<xs:element name="line">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10000">

<xs:element name="line-item" type=" SPPoint "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="polygon" type=" SPPolygon "/>

</xs:choice>

</xs:complexType>

</xs:element>

<xs:element name="fill" type=" CPT-Boolean " minOccurs="0"/>

<xs:element name="thickness" type=" CPT-GenericCounter " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
