Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SPFeature
Used by (from the same schema document)	Complex Type CcGISFile , Complex Type CcGISFile , Complex Type SpGIS , Complex Type SpGIS , Complex Type SpGISPush
Abstract	no

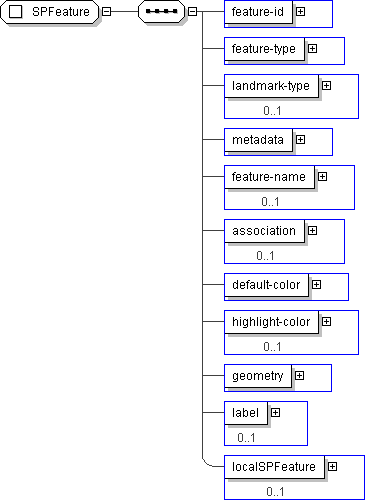

XML Instance Representation

<...>

<feature-id> SP-FeatureID </feature-id> [1]

<feature-type> CPT-FeatureType </feature-type> [1]

<landmark-type> PI-LandmarkType </landmark-type> [0..1]

<metadata> CPTRowMetaData </metadata> [1]

<feature-name> SP-FeatureName </feature-name> [0..1]

<association> CPTGenericIden </association> [0..1]

<default-color> CPT-Color </default-color> [1]

<highlight-color> CPT-Color </highlight-color> [0..1]

<geometry> SPFeatureGeometry </geometry> [1]

<label> SP-FeatureLabel </label> [0..1]

<localSPFeature> local:SPFeature </localSPFeature> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SPFeature">

<xs:sequence>

<xs:element name="feature-id" type=" SP-FeatureID "/>

<xs:element name="feature-type" type=" CPT-FeatureType "/>

<xs:element name="landmark-type" type=" PI-LandmarkType " minOccurs="0"/>

<xs:element name="metadata" type=" CPTRowMetaData "/>

<xs:element name="feature-name" type=" SP-FeatureName " minOccurs="0"/>

<xs:element name="association" type=" CPTGenericIden " minOccurs="0"/>

<xs:element name="default-color" type=" CPT-Color "/>

<xs:element name="highlight-color" type=" CPT-Color " minOccurs="0"/>

<xs:element name="geometry" type=" SPFeatureGeometry "/>

<xs:element name="label" type=" SP-FeatureLabel " minOccurs="0"/>

<xs:element name="localSPFeature" type=" local:SPFeature " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
