Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	FCFareZoneDefinition
Used by (from the same schema document)	Complex Type FcFareDataPush , Complex Type FcFareLoadData , Complex Type FcFareZonePush , Complex Type FcFareZones
Abstract	no

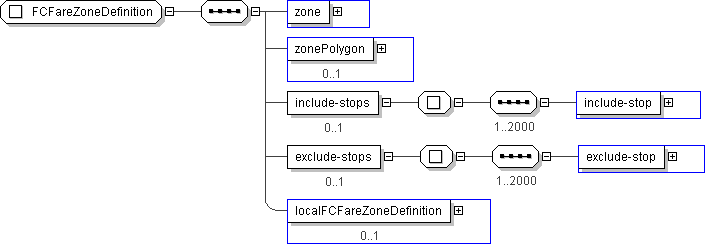

XML Instance Representation

<...>

<zone> FCFareZoneIden </zone> [1]

<zonePolygon> SPPolygon </zonePolygon> [0..1]

<include-stops> [0..1]
Start Sequence [1..2000]

<include-stop> CPTStoppointIden </include-stop> [1]

End Sequence
</include-stops>

<exclude-stops> [0..1]
Start Sequence [1..2000]

<exclude-stop> CPTStoppointIden </exclude-stop> [1]

End Sequence
</exclude-stops>

<localFCFareZoneDefinition> local:FCFareZoneDefinition </localFCFareZoneDefinition> [0..1]

</...>

Schema Component Representation

<xs:complexType name="FCFareZoneDefinition">

<xs:sequence>

<xs:element name="zone" type=" FCFareZoneIden "/>

<xs:element name="zonePolygon" type=" SPPolygon " minOccurs="0"/>

<xs:element name="include-stops" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="2000">

<xs:element name="include-stop" type=" CPTStoppointIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="exclude-stops" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="2000">

<xs:element name="exclude-stop" type=" CPTStoppointIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localFCFareZoneDefinition" type=" local:FCFareZoneDefinition " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
