Documentation for ATIS-Draft-03-00-79

Complex Type: PiServiceList

[Table of contents]

Super-types: None
Sub-types: None
Name PiServiceList
Used by (from the same schema document) Element piServiceList
Abstract no
XML Instance Representation
<...>
<header> CPTSubscriptionHeader </header> [1]
<agency-ids> [0..1]
Start Sequence [1..100]
<agency-id> CPT-AgencyID </agency-id> [1]
End Sequence
</agency-ids>
<zones> [0..1]
Start Sequence [1..100]
<zone> PIServiceZoneIden </zone> [1]
End Sequence
</zones>
<stoppoints> [0..1]
Start Sequence [1..100]
<stoppoint> CPTStoppointIden </stoppoint> [1]
End Sequence
</stoppoints>
<polygon> SPPolygon </polygon> [0..1]
<point-location> SPPoint </point-location> [0..1]
<distance> lrms:Distance </distance> [0..1]
<modes> [0..1]
Start Sequence [1..10]
<mode> CPT-Mode </mode> [1]
End Sequence
</modes>
<services> [0..1]
Start Sequence [1..10000]
<service> PIService </service> [1]
End Sequence
</services>
</...>

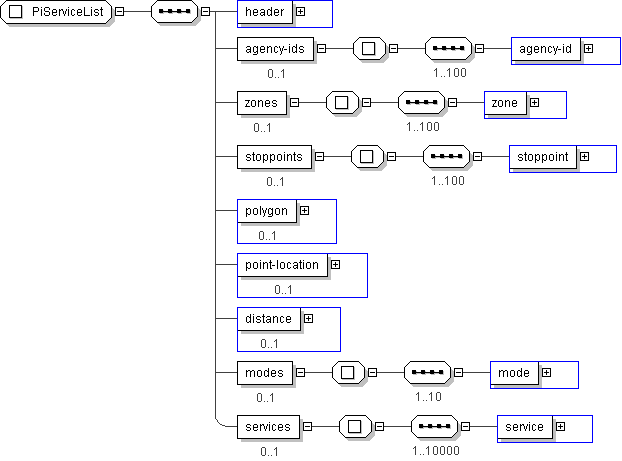

Diagram
h-527207252 h948193899 h506659239 h2146772752 h-1414121128 h2081204526 h1439634298 h-1969600082 h-1514789961
Schema Component Representation
<xs:complexType name="PiServiceList">
<xs:sequence>
<xs:element name="header" type=" CPTSubscriptionHeader "/>
<xs:element name="agency-ids" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="agency-id" type=" CPT-AgencyID "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="zones" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="zone" type=" PIServiceZoneIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="stoppoints" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="stoppoint" type=" CPTStoppointIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="polygon" type=" SPPolygon " minOccurs="0"/>
<xs:element name="point-location" type=" SPPoint " minOccurs="0"/>
<xs:element name="distance" type=" lrms:Distance " minOccurs="0"/>
<xs:element name="modes" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10">
<xs:element name="mode" type=" CPT-Mode "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="services" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="service" type=" PIService "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
