Documentation for ATIS-Draft-03-00-79

Complex Type: CcCannedMessageText

[Table of contents]

Super-types: None
Sub-types: None
Name CcCannedMessageText
Used by (from the same schema document) Element ccCannedMessageText
Abstract no
XML Instance Representation
<...>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<canned-messages> [0..1]
Start Sequence [1..100]
<canned-message> CCCannedMsgDefinition </canned-message> [1]
End Sequence
</canned-messages>
<take-lists> [0..1]
Start Sequence [1..100]
<take-list> CCTakeListDefinition </take-list> [1]
End Sequence
</take-lists>
<delete-take-lists> [0..1]
Start Sequence [1..100]
<delete-take-list> CCTakeListDefinition </delete-take-list> [1]
End Sequence
</delete-take-lists>
<delete-msgs> [0..1]
Start Sequence [1..100]
<delete-msg> CC-CannedMsgID </delete-msg> [1]
End Sequence
</delete-msgs>
</...>

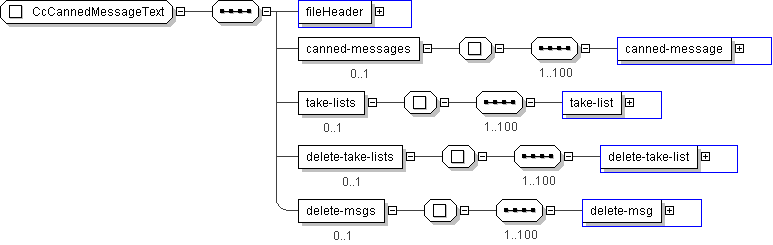

Diagram
h-956766127 h-1780249806 h2129509725 h2129509725 h214388791
Schema Component Representation
<xs:complexType name="CcCannedMessageText">
<xs:sequence>
<xs:element name="fileHeader" type=" CPTLoadFileHeader "/>
<xs:element name="canned-messages" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="canned-message" type=" CCCannedMsgDefinition "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="take-lists" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="take-list" type=" CCTakeListDefinition "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="delete-take-lists" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="delete-take-list" type=" CCTakeListDefinition "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="delete-msgs" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="delete-msg" type=" CC-CannedMsgID "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
