Documentation for ATIS-Draft-03-00-79

Element: ccCannedMessageText

[Table of contents]

Name ccCannedMessageText
Type CcCannedMessageText
Nillable no
Abstract no

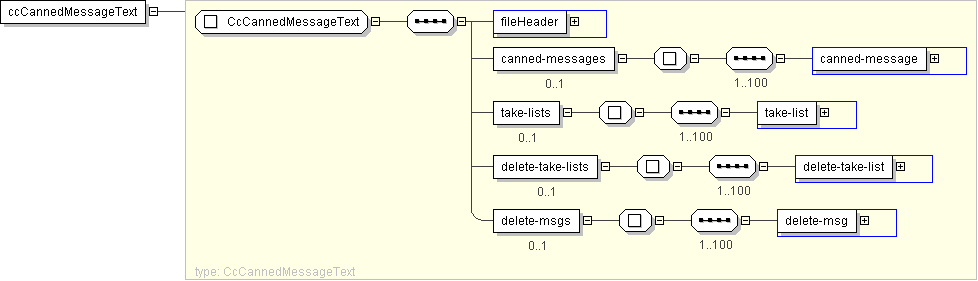

Logical Diagram
h-2078410676 h-1171550695 h-1468978190 h-232134226 h426482481
XML Instance Representation
<ccCannedMessageText>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<canned-messages> [0..1]
Start Sequence [1..100]
<canned-message> CCCannedMsgDefinition </canned-message> [1]
End Sequence
</canned-messages>
<take-lists> [0..1]
Start Sequence [1..100]
<take-list> CCTakeListDefinition </take-list> [1]
End Sequence
</take-lists>
<delete-take-lists> [0..1]
Start Sequence [1..100]
<delete-take-list> CCTakeListDefinition </delete-take-list> [1]
End Sequence
</delete-take-lists>
<delete-msgs> [0..1]
Start Sequence [1..100]
<delete-msg> CC-CannedMsgID </delete-msg> [1]
End Sequence
</delete-msgs>
</ccCannedMessageText>

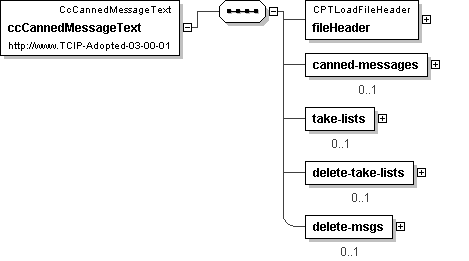

Diagram
h-956766127 h-1780249806 h2129509725 h2129509725 h214388791
Schema Component Representation
<xs:element name="ccCannedMessageText" type=" CcCannedMessageText "/>
