Documentation for ATIS-Draft-03-00-79

Complex Type: CPTFileApplicability

[Table of contents]

Super-types: None
Sub-types: None
Name CPTFileApplicability
Used by (from the same schema document) Complex Type CPTLoadFileHeader , Complex Type CPTPushHeader , Complex Type CPTSubscriptionHeader , Complex Type CPTUnloadFileHeader , Complex Type PIAgencyStaticFile
Abstract no
XML Instance Representation
<...>
<applicable-routes> [0..1]
Start Sequence [1..200]
<applicable-route> SCHRouteIden </applicable-route> [1]
End Sequence
</applicable-routes>
<applicable-ptvs> [0..1]
Start Sequence [1..20000]
<applicable-ptv> CPTVehicleIden </applicable-ptv> [1]
End Sequence
</applicable-ptvs>
<applicable-stops> [0..1]
Start Sequence [1..20000]
<applicable-stop> CPTStoppointIden </applicable-stop> [1]
End Sequence
</applicable-stops>
<applicable-facilitites> [0..1]
Start Sequence [1..10000]
<applicable-facilitite> CPTTransitFacilityIden </applicable-facilitite> [1]
End Sequence
</applicable-facilitites>
<applicable-garages> [0..1]
Start Sequence [1..100]
<applicable-garage> CPTTransitFacilityIden </applicable-garage> [1]
End Sequence
</applicable-garages>
<applicable-fleet-subsets> [0..1]
Start Sequence [1..100]
<applicable-fleet-subset> CPT-FleetSubset </applicable-fleet-subset> [1]
End Sequence
</applicable-fleet-subsets>
<applicable-stoppoint-subsets> [0..1]
Start Sequence [1..100]
<applicable-stoppoint-subset> CPT-StoppointSubset </applicable-stoppoint-subset> [1]
End Sequence
</applicable-stoppoint-subsets>
<applicable-fare-subsets> [0..1]
Start Sequence [1..100]
<applicable-fare-subset> FC-FareEquipmentSubset </applicable-fare-subset> [1]
End Sequence
</applicable-fare-subsets>
</...>

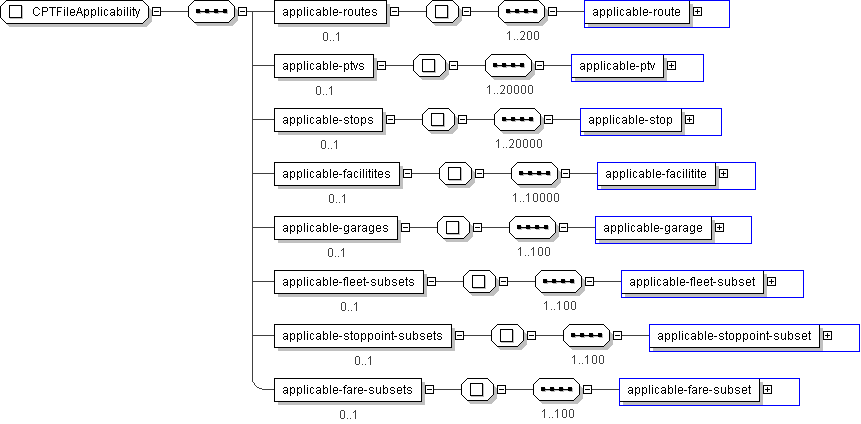

Diagram
h-963684166 h1471596526 h2146772752 h2133900120 h2133900120 h918121125 h-1139377755 h-81358665
Schema Component Representation
<xs:complexType name="CPTFileApplicability">
<xs:sequence>
<xs:element name="applicable-routes" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="200">
<xs:element name="applicable-route" type=" SCHRouteIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="applicable-ptvs" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="20000">
<xs:element name="applicable-ptv" type=" CPTVehicleIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="applicable-stops" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="20000">
<xs:element name="applicable-stop" type=" CPTStoppointIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="applicable-facilitites" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="10000">
<xs:element name="applicable-facilitite" type=" CPTTransitFacilityIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="applicable-garages" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="applicable-garage" type=" CPTTransitFacilityIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="applicable-fleet-subsets" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="applicable-fleet-subset" type=" CPT-FleetSubset "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="applicable-stoppoint-subsets" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="applicable-stoppoint-subset" type=" CPT-StoppointSubset "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="applicable-fare-subsets" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="applicable-fare-subset" type=" FC-FareEquipmentSubset "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
