Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CPTPushHeader
Used by (from the same schema document)	Complex Type CcDGPSPush , Complex Type CcTravelerRequestLogPush , Complex Type CptPushFailure , Complex Type CptPushSuccess , Complex Type FcFareDataPush , Complex Type FcFareZonePush , Complex Type PiPushAgencyFiles , Complex Type PiPushTextTimetable , Complex Type SchPushBlockSchedule , Complex Type SchPushCalendar , Complex Type SchPushMasterScheduleVersion , Complex Type SchPushOperatorAssignments , Complex Type SchPushPatterns , Complex Type SchPushRoster , Complex Type SchPushRouteSchedule , Complex Type SchPushRunningTimes , Complex Type SchPushRunSchedule , Complex Type SchPushTimepoints , Complex Type SchPushVehicleAssignments , Complex Type SpGeolocationData , Complex Type SpGISPush
Abstract	no

XML Instance Representation

<...>

<file-type> CPT-FileIdentifier </file-type> [1]

<effective> CPT-DateTime </effective> [1]

<sched-version> SCH-TimetableVersionID </sched-version> [0..1]

<version-number> CPT-FileVersion </version-number> [0..1]

<source> CPT-ApplicationID </source> [1]

<updates-only> CPT-Boolean </updates-only> [1]

<updates-since> CPT-DateTime </updates-since> [0..1]

<updates-thru> CPT-DateTime </updates-thru> [1]

<applicability> CPTFileApplicability </applicability> [0..1]

<time-sent> CPT-DateTime </time-sent> [1]

</...>

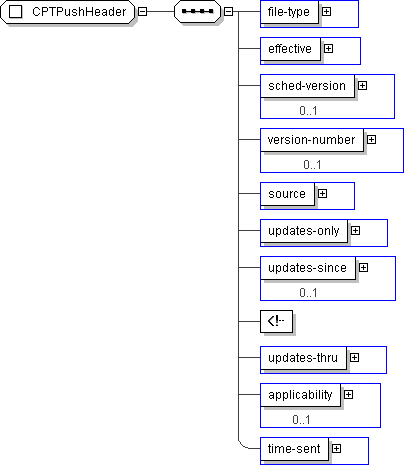

Diagram

Schema Component Representation

<xs:complexType name="CPTPushHeader">

<xs:sequence>

<xs:element name="file-type" type=" CPT-FileIdentifier "/>

<xs:element name="effective" type=" CPT-DateTime "/>

<xs:element name="sched-version" type=" SCH-TimetableVersionID " minOccurs="0"/>

<xs:element name="version-number" type=" CPT-FileVersion " minOccurs="0"/>

<xs:element name="source" type=" CPT-ApplicationID "/>

<xs:element name="updates-only" type=" CPT-Boolean "/>

<xs:element name="updates-since" type=" CPT-DateTime " minOccurs="0"/>

<-- only if above is true -->

<xs:element name="updates-thru" type=" CPT-DateTime "/>

<xs:element name="applicability" type=" CPTFileApplicability " minOccurs="0"/>

<xs:element name="time-sent" type=" CPT-DateTime "/>

</xs:sequence>

</xs:complexType>
