Documentation for ATIS-Draft-03-00-79

Complex Type: SchPushMasterScheduleVersion

[Table of contents]

Super-types: None
Sub-types: None
Name SchPushMasterScheduleVersion
Used by (from the same schema document) Element schPushMasterScheduleVersion
Abstract no
XML Instance Representation
<...>
<pushHeader> CPTPushHeader </pushHeader> [1]
<included-routes> [1]
Start Sequence [1..500]
<included-route> SCHRouteIden </included-route> [1]
End Sequence
</included-routes>
<versionInfo> [1]
Start Sequence [1..500]
<versionInfo-item> SCHRouteVersion </versionInfo-item> [1]
End Sequence
</versionInfo>
</...>

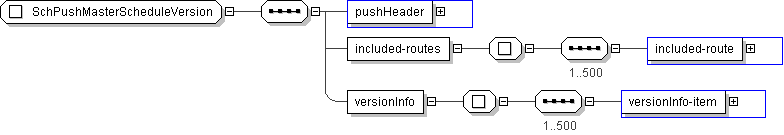

Diagram
h-1737467159 h-963684166 h1434918754
Schema Component Representation
<xs:complexType name="SchPushMasterScheduleVersion">
<xs:sequence>
<xs:element name="pushHeader" type=" CPTPushHeader "/>
<xs:element name="included-routes">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="500">
<xs:element name="included-route" type=" SCHRouteIden "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="versionInfo">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="500">
<xs:element name="versionInfo-item" type=" SCHRouteVersion "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
